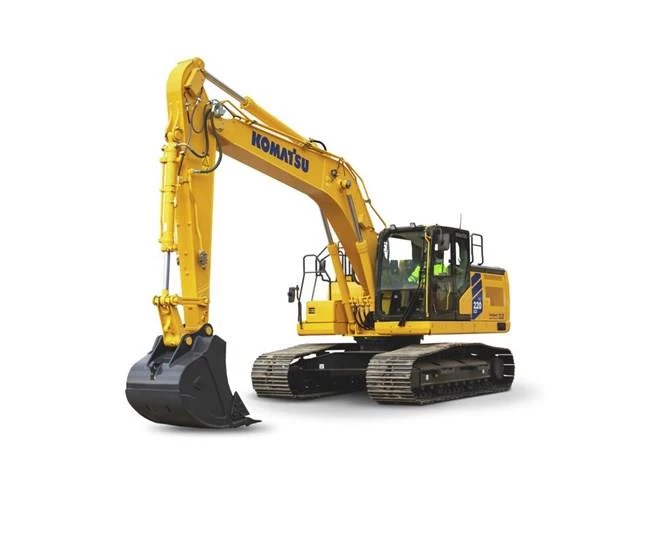

New Komatsu PC220LC-12 Excavator for Sale

Next-level technology for enhanced operator enablement

We’ve reimagined the operator environment and added our latest smart tech for an excavator built to help unleash the full potential of human and machine on every shift. The PC220LCi-12 was engineered with the goal of creating the most comfortable, advanced, customizable, and efficient working environment in a Komatsu excavator. Additionally, the PC220LCI-12 incorporates Komatsu’s latest IMC 3.0 smart technology, as well as advanced payload and machine swinging automation.

• 3D boundary control factory-integrated technology is a unique feature and the first in the construction industry
• The cab is 28% larger with 30% more legroom and 50% improved visibility*
• New multi-function, comfortable operator seat with heating and air suspension
• Up to a 20% reduction in fuel and diesel exhaust fluid costs*

*All percentage claims are based on a comparison to the previous PC210LC-11 model. Cost reductions are achieved through a new electronically controlled hydraulic system and a high-output engine.

Features & Benefits

• Updated cab design: This new cab design enhances operator comfort and visibility, helping to maintain productivity during long shifts. Improved legroom and visibility (compared to the PC210LC-11).
• Intuitive and customizable cab monitor: A clear interface, combined with high-definition visuals, provides an intuitive, user-friendly, and customizable experience for the operator. Joystick controls are also customizable.
• Air-suspension multi-function seat: Komatsu has improved the operator experience and comfort with upgraded seats. The most innovative seat has variable heat/cool settings and is adjustable to a maximum of 60 mm across six levels. The premium seat also features shock absorption providing additional comfort. The air suspension feature can be adjusted to a maximum height of 80 mm, with no level intervals.
• IMC 3.0: IMC 3.0 introduces valuable new technology layers, including auto-swing and auto-return dig for loading trucks, alongside existing grade control systems. It also offers seamless integration with Smart Construction solutions.
• 3D boundary control: Set a work-restriction surface for height, depth, front, back and side boundaries. The machine is designed to stop automatically when it approaches a restricted zone. Can be used for multiple work restriction surfaces.
• Advanced payload, swing automation: Payload meter helps optimize loading and prevent insufficient hauls with real-time monitoring. Auto swing allows operator to specify swing speed and loading swing bucket hold angle.
• User interface enhancements: Upgraded from the previous model to an 8-inch touch-panel monitor. High-resolution display and easy access to various machine functions. Intuitive controls for attachment, working mode, and travel mode.
• Future-ready ICT monitor: The 10.1-inch ICT monitor offers intuitive controls and real-time data visualization. The system supports over-the-air software updates, enabling continuous improvement and future enhancements.
• Revamped work equipment: Enhanced work equipment through thick plating and reinforced castings. Provides additional strength and power for the operator in tough work conditions.
• Enhanced operator features promote zero harm:
• Rollover avoidance alerts. KomVision 360 camera for enhanced bird’s eye views. Unbuckled seat belt reminders and human detection alerts. Courtesy lights and handrails designed for high visibility.
• 2D machine control: Enhances excavation and grading by automatically managing the cutting edge's position relative to a design surface. Includes auto stop control, auto grade assist, and touch point functionality.
• Control maintenance costs: Compared to the PC210LC-11, up to a 20% reduction in overall maintenance costs can be achieved for extended intervals with hydraulic oil and filter replacement, as well as KDPF cleaning.
