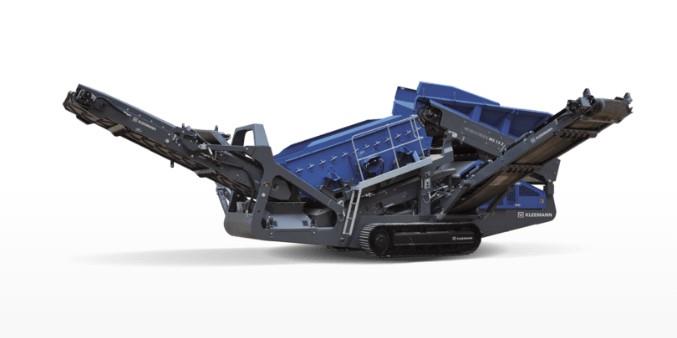

New Kleemann MSS 502 EVO Mobile Coarse Screen for Sale The mobile screening plants MOBISCREEN are used for screening almost all types of natural rock and in recycling. The classifying and coarse screens are available in a double- or triple-deck version, with hydraulic or diesel-electric drives. The applications of the MOBISCREEN plants are diverse. There is a variety of appropriate screen media available for obtaining different grain sizes and for different feed material. The MOBISCREEN coarse screens are used, for example, before the crushing process for sorting out material. Coarse screen media such as slotted grates, finger screens, and punched plates are used. Various plant variants with double-deck screening units are available. Robustly designed mobile double-deck screening plants with an output of up to 300 t/h, suitable for feed material with an edge length of up to 400 mm. The plant is equally well suited to use in natural stone, as well as in recycling. Changing work sites and new applications often create challenges for screening plants. The mobile screen for coarse elements MOBISCREEN MSS 502 EVO is ideally prepared for this. The large range of screen surfaces and the simple setting of screening parameters make it possible to adapt the MSS 502 EVO easily to new application conditions.
|
| Dimensions | |
|---|---|
| Length | 41’11” |
| Height | 11’2” |
| Transport Length | 47'3" |
| Transport Height | 10'3" |
| Transport Width | 10'3" |
| Transport Weight | 58,200 lbs. (basic plant) 73,950 lbs. (configuration) |
| Final Screening Unit | 5" x 13'1" (Upper deck) 5" x 11'11" (Lower deck) |
| Engine/Drivetrain | |
|---|---|
| Engine Make | John Deere |
| Horsepower | 98 HP |
| Drive Concept | H-DRIVE (Diesel-hydraulic) |
| Operational | |
|---|---|
| Screen | Double-deck screen for coarse elements |
| Feed Height | 10'10" |
| Feed Size Max | 26” x 16” x 10” |
| Feed Capacity up to approx. | 309 US t/hr |
| Hopper Volume | 8.4 yd³ |
| Feeding Conveyor Length | 12'10" |
| Feeding Conveyor Width | 47" |
| Belt Conveyor Discharge Width | 40" (Fine Grain) |
| Belt Conveyor Discharge Length | 6'11" (Fine Grain) |
| Discharge Conveyor Height | 8'5"-11'4" (passage, lower deck, fine grain) 11' (overflow, lower deck, medium grain) 13'2" (overflow, upper deck, oversize grain) |
| Discharge Conveyor Width | 32" (passage, lower deck, fine grain) 32" (overflow, lower deck, medium grain) 48" (overflow, upper deck, oversize grain) |
| Discharge Conveyor Length | 23'5" (passage, lower deck, fine grain) 25'6" (overflow, lower deck, medium grain) 19'11" (overflow, upper deck, oversize grain) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Kleemann |
| MODEL | MSS 502 EVO |
