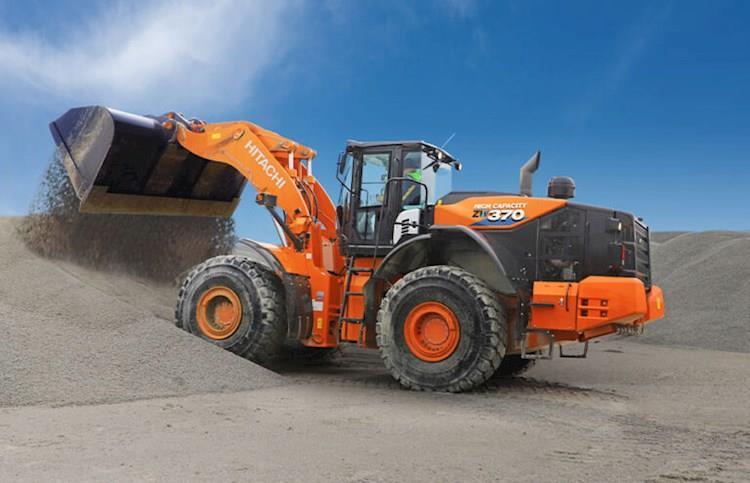

Hitachi ZW370-6 HC Loader for Sale HIGH CAPACITY FOR LOADS OF TOUGH WORK Big jobs come with big demands. The Hitachi ZW370-6 HC is built for the biggest and toughest working conditions, bringing high-capacity capabilities to the jobsite to maximize your productivity. This wheel loader has the safety and convenience features you expect from Hitachi, with the size to perform on big scales. |
| Dimensions | |
|---|---|
| Length | 32’ (General Purpose) 32’2” (Material Handling) |
| Width | 11’2” (outside tire) 12’5” (outside bucket) |
| Height | 12’3” (up to cab top) 21’6” (up to cab top-General Purpose) 21’7’ (bucket fully raised-Material Handling) |
| Wheelbase | 11’10” |
| Ground Clearance | 17” |
| Operating Weight | 79,010 lbs. (General Purpose) 79,200 lbs. (Material Handling) |
| Tread | 8'3" |
| Engine | |
|---|---|
| Engine Make | Isuzu |
| Engine Model | 6WG1 |
| Engine Type | Diesel Engine; direct injection with turbocharger and air cooled intercooler |
| Cylinders | 6 |
| Gross Horsepower | 389 HP |
| Net Horsepower | 386 HP |
| Cooling | Water-Cooled |
| Bore x Stroke | 5.8” x 6.2” |
| Displacement | 957 in³ |
| Speed - Foreward | 1st: 3.8 MPH (Normal & Power Mode) 2nd: 7.1 MPH (Normal & Power Mode); 7.6 MPH (Normal Mode w/Lock-up clutch & Power Mode w/Lock-up clutch) 3rd: 12.0 MPH (Normal & Power Mode); 13.5 MPH (Normal Mode w/Lock-up clutch & Power Mode w/Lock-up clutch) 4th: 22.4 MPH (Normal & Power Mode); 23.0 MPH (Normal Mode w/Lock-up clutch & Power Mode w/Lock-up clutch) |
| Speed - Reverse | 1st: 4.1 MPH (Normal & Power Mode) 2nd: 7.6 MPH (Normal & Power Mode); 8.3 MPH (Normal Mode w/Lock-up clutch & Power Mode w/Lock-up clutch) 3rd: 13.0 MPH (Normal & Power Mode); 14.5 MPH (Normal Mode w/Lock-up clutch & Power Mode w/Lock-up clutch) |
| Gears | Spiral bevel gear, torque proportioning, single stage reductoin |
| Air Cleaner | Dry type (double element) |
| Fuel Type | #2 Diesel (Requires ultra-low sulfur fuel) |
| Fuel Tank Capacity | 115.7 Gallons |
| Starter | DC24V |
| Battery | DC 12V-1, 170 CCA (200 Ah), 2 units |
| Alternator | DC 24V-110A |
| Governor | All speed electrical type |
| Rated RPM | 1800 RPM |
| Cycles | 4 |
| Torque Converter | 3-element, single-stage, single phase w/lock-up clutch |
| Fuel Injection Pump | Electronically controlled, common rail type |
| Cooling Module Type | Hydraulic-drive, heat-sensing, pressurized radiator |
| Final Reduction Gear | Heavy-duty planetary, outboard mounted |
| Drivetrain | |
|---|---|
| Axles | Full-floating type |
| Transmission Type | Torque converter, planetary gear type power shift with computer-controlled automatic shift and manual shift features included |
| Drive System | 4-wheel drive |
| Brakes | Service Brakes: Middle mounted fully hydraulic 4-wheel disc brake. Front and rear independent brake circuit Parking/Emergency Brakes: Spring-applied, hydraulically-released. Located in front axle driveline |
| Tires | 875/65R29 (L-3) |
| Hydraulic | |
|---|---|
| Pump | 89.8 GPM/1000 PSI @ 1800 RPM (Main Oil Pump; Variable Piston type) 23.8 GPM/3260 PSI @ 1800 RPM (HST charging pump; Variable Piston type) |
| Hydraulic Tank Capacity | 47 Gallons |
| Hydraulic Cylinders | Lift (Boom) cylinder: Two (2) double-acting piston type: 6.3“ x 40.4” Tilt (Bucket) cylinder: Two (2) double-acting piston type: 5.1” x 25.8” Steering cylinder: Two (2) double-acting piston type: 3.5” x 23.6” |
| Hydraulic Cycle Time | 6.4 sec. (Lifting time at full load) 4.2 sec. (Lowering time – empty) 1.4 sec. (Bucket Dumping Time) 12.0 sec. Total |
| Relief Valve Setting | 4975 PSI, 34.3 MPa (Loading) 3998 PSI, 27.5 MPa (Steering) |
| Operational | |
|---|---|
| Dig Depth | 5” |
| Bucket Capacity | 8.1 yd³-8.5 yd³ |
| Dump Reach | 4’10” (General Purpose) 5’2” (Material Handling) |
| Steering | Articulated frame steering |
| Breakout Force | 47,250 lbf. (Material Handling) 49,280 lbf. (General Purpose) |
| Articulation Angle | 37° |
| Oscillation Angle | Total 18 (+9, -9)° |
| Operating Capacity | 8.1 yd³ (heaped-General Purpose) 8.5 yd³ (heaped-Material Handling) 6.9 yd³ (struck-General Purpose) 7.3 yd³ (struck-Material Handling) |
| Dump Clearance | 10’8” (General Purpose) 10’7” (Material Handling) |
| Hinge Pin Height | 15’4” |
| Clearance Circle | 26’3” (outside of bucket) 21’8” (outside of tire-General Purpose) 21’9” (outside of tire-Material Handling) |
| Static Tipping Load | 62,380 lbs. (General Purpose-Straight) 53,340 lbs. (General Purpose-Full turn) 62,070 lbs. (Material Handling-Straight) 53,100 lbs. (Material Handling-Full turn) |
| Steering Mechanism | Hydraulic power steering unit, pilot operated type |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Hitachi |
| MODEL | ZW370-6 HC |
