Hitachi ZW250-7

New Hitachi

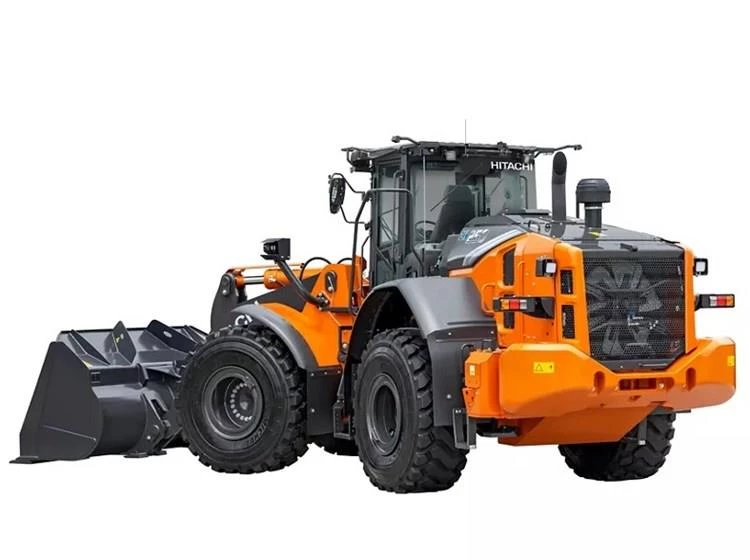

New Hitachi ZW250-7 Loader for Sale

Gain Complete Control with An Efficient Powerhouse.

An integrated console and suspension seat with seat-mounted electric control levers reduce fatigue while giving you ultimate control. Approach speed control and a payload checker increase efficiency while placing you in command of loading operations.
Dimensions
Wheelbase 10’10”
Ground Clearance 1’4”
Turning Radius 19’11” (centerline of outside tire)
11’8” (inside of tires)
Overall Length 28’3” (Bolt-on Cutting edge; General Purpose Standard Arm)
28’9” (Weld-on teeth/segment edge; General Purpose Standard Arm)
28’5” (Bolt-on Cutting edge; General Purpose Standard Arm)
29’9” (Bolt-on Cutting edge; Light Material High-Lift Arm)
Without Bucket
23’6” (Bolt-on Cutting edge and Weld-on teeth/segment edge; General Purpose Standard Arm)
25’ (Bolt-on Cutting edge; Light Material High-Lift Arm)
Overall Height 11’2”
Overall Operating:
-18’6” (Bolt-on Cutting edge; General Purpose Standard Arm)
-18’7” (Weld-on teeth/segment edge; General Purpose Standard Arm)
-20’ (Bolt-on Cutting edge; Light Material High-Lift Arm)
Operating Weight 46,100 lbs. (Bolt-on Cutting edge; General Purpose Standard Arm)
46,170 lbs. (Weld-on teeth/segment edge; General Purpose Standard Arm)
46,500 lbs. (Bolt-on Cutting edge; General Purpose Standard Arm)
47,290 lbs. (Bolt-on Cutting edge; Light Material High-Lift Arm)
Steering Angle Each direction 37°; total 74°
Rear Axle Trunnion support
Final Drive Heavy-duty planetary, mounted inboard
Reach 3’7” (Bolt-on Cutting edge; General Purpose Standard Arm)
3’11” (Weld-on teeth/segment edge; General Purpose Standard Arm)
3’8” (Bolt-on Cutting edge; General Purpose Standard Arm & Light Material High-Lift Arm)
Width over Tires 9’5”
Tire Size 23.5R25 (L3) tires
Tread 7’3”
Loader Clearance Radius 23’4” (Bolt-on Cutting edge; General Purpose Standard Arm)
23’6” (Weld-on teeth/segment edge; General Purpose Standard Arm)
23’5” (Bolt-on Cutting edge; General Purpose Standard Arm)
24’ (Bolt-on Cutting edge; Light Material High-Lift Arm)
Steering Type Articulated frame steering
Height of Bucket Pin 1’11”
Articulate Angle 37 degrees
Engine
Engine Make Cummins
Engine Model B6.7
Engine Type Direct injection
Cylinders 6
Gross Horsepower 252 HP
Cooling Water-cooled
Bore x Stroke 4.21” x 4.88”
Air Cleaner Two element dry type with restriction indicator
Fuel Tank Capacity 80.6 Gallons
Battery 2 x 12 V
Aspiration Turbocharger and intercooled
Cycles 4
Piston Displacement 408.0 cu. in
Engine Oil Capacity 6.6 Gallons
Torque Converter Three element, single stage, single phase
After-Treatment DPF and SCR system
Travel Speed 1st: 3.6 mph/3.8 mph
2nd: 6.3 mph /6.6 mph
3rd: 9.1 mph /14.2 mph
4th: 13.8 mph
5th: 21.1 mph
Filters Full-flow 9 micron return filter in reservoir
Cooling Method Forced circulation type
Type of Emission Complies with EU stage V
Drivetrain
Axles Semi-floating
Transmission Torque converter, shaft type powershift with computer-controlled automatic shift and manual shift features included
Torque Net: 875 lbf
Gross: 859 lbf
Drive System Four-wheel drive system
Brakes Service brakes: Inboard mounted fully hydraulic 4 wheel disc brake. Front & rear independent brake circuit
Parking brakes: Spring applied, hydraulically released, dry disc type with external output shaft
Hydraulic
Pump Fixed Displacement Gear Pump
Hydraulic Cycle Time Lift arm raise-5.3 seconds
Lift arm lower-3.5 seconds
Bucket dump-1.4 seconds
Total-10.2 seconds
Hydraulic Bore x Stroke Double acting type
No. x Bore x Stroke:
Arm: 2 x 5.1” x 37”
Bucket: 1 x 6.5” x 20.9”
Operational
Bucket Width 10’2”
Dig Depth 0’5” (Standard Arm)
0’6” (High-Lift Arm)
Bucket Capacity Heaped/Struck
4.8/4.3 (Bolt-on cutting edge, Weld-on teeth/segment edge General purpose standard arm & light material high-lift arm)
5.2/4.6 (Bolt-on cutting edge general purpose standard arm)
Front Axle Fixed to the front frame
Flow Main/Steering: 72.7 gallons
Fan: 17.4 gallons
Breakout Force 34,690 lbs. (Bolt-on Cutting edge; General Purpose Standard Arm)
31,980 lbs. (Weld-on teeth/segment edge; General Purpose Standard Arm)
33,040 lbs. (Bolt-on Cutting edge; General Purpose Standard Arm)
31,920 lbs. (Bolt-on Cutting edge; Light Material High-Lift Arm)
Oscillation Angle Total 24° (+12°, -12°)
Rollback Angle 50 degrees
44 degrees (Standard Arm)/45 degrees (High-Lift Arm)
At full height: 60 degrees (Standard Arm)/53 degrees (High-Lift Arm)
Control Positions Arm and bucket are controlled by multifunction lever
Bucket controls with automatic bucket return-to-dig control
Dump Clearance 9’7” (Bolt-on Cutting edge; General Purpose Standard Arm)
9’3” (Weld-on teeth/segment edge; General Purpose Standard Arm)
9’6” (Bolt-on Cutting edge; General Purpose Standard Arm)
11’1” (Bolt-on Cutting edge; Light Material High-Lift Arm)
Hinge Pin Height 13’9” (Standard Arm)
15’3” (High-Lift arm)
Static Tipping Load Straight/Full 37 degree
37,360 lbs./32,910 lbs. (Bolt-on Cutting edge; General Purpose Standard Arm)
37,270 lbs./32,840 lbs. (Weld-on teeth/segment edge; General Purpose Standard Arm)
32,590 lbs./28,710 lbs. (Bolt-on Cutting edge; General Purpose Standard Arm)
30,750 lbs./27,090 lbs. (Bolt-on Cutting edge; Light Material High-Lift Arm)
Main Clutch Wet hydraulic, multi-disc type
Steering Cylinders Double-acting piston type
Steering Bore x Stroke 2 x 2.8” x 21.3”
Arm Controls Arm and bucket are controlled by multifunction lever; Arm: Four position valve; Raise, hold, lower, float.
Bucket Controls Bucket controls with automatic bucket return-to-dig control; Three position valve; Roll back, hold, dump
Pressure Main/Steering: 4260 PSI
Fan: 2250 PSI
Lift Arm Clearance 12’7” (Standard Arm)
14’1” (High-lift Arm)
Departure Angle 28 degrees
Reduction and Differential Gear Two stage reduction with limited slip differential
Steering Pump Variable displacement axial plunger pump
Electrical
Sound Level LpA 68 dB(A) (Sound level in cab according to ISO 6396: 2008)
LwA 105 dB(A) (External sound level according to ISO 6395: 2008 and EU Directive 2000/14/EC)
  • Engine
    • Aftertreatment device
    • Aftertreatment device regeneration inhibit switch
    • Aftertreatment device manual regeneration switch
    • Air filter double elements
    • Air intake
    • Pre-cleaner (Sy-Klone)
    • Anti-clogging radiator (Wide fin pitch radiator)
    • Automatic reversible cooling fan with heat sensing
    • Cartridge-type engine oil filter
    • Cartridge-type fuel pre-filter
    • Cartridge-type fuel main filter
    • Coolant reservoir sight gauge
    • DEF/AdBlue® tank extension filler
    • DEF/AdBlue® tank with ISO magnet adapter
    • Engine auto shut-down control system
    • Engine block heater
    • Engine oil remote drain
    • Fan guard
  • Brake System
    • Front and rear independent brake circuit
    • Inboard mounted fully hydraulic 4 wheel wet disc
    • Spring-applied/Hydraulic-released parking brake
  • Hydraulic System
    • Bucket auto leveler (Automatic return to dig control)
    • Electric control lever
      • for 3 spools control valve
        • 2 levers
    • Control lever lock switch
    • Dual lift arm auto leveler and kickout system
    • Hydraulic filters
    • Lift arm float system
    • Reservoir sight gauge
    • Ride control system (OFF-AUTO type)
    • Work mode selector
  • Cab
    • Adjustable steering column with POP-UP
    • Auto control air conditioner
      • with single intake filter
    • Bluetooth® integrated FM/AM+radio, hands-free calling
    • Camera & monitor
      • Rear view camera & monitor
    • Coat hook
    • Evacuation hammer
    • Front/Rear defroster
    • Glove compartment
    • LED room light
    • Payload checker with tip-off function
    • Rear view mirrors
      • Inside (1)
      • Outside (2)
    • Retractable seat belt, 3.0 in (76 mm)
    • ROPS (ISO3471 : 2008), FOPS (ISO3449 : 2008 LEVEL ll) : multi-plane isolation mounted for noise
    • Rubber floor mat
    • Seat
    • Heavy duty air suspension seat equipped with horizontal
    • suspension headrest and heater: fabric, high back, adjustable for damper, inclination of the seat, seat depth, weight-height, foreaft position, reclining angle, armrest angle, headrest height and angle, lumbar support
    • Seat belt reminder
    • Steering system
      • Joystick steering (with wheel steering)
    • Stereo speakers (2)
    • Storage
      • Cup holder
      • Document holder
      • Hot & cool box
      • Seatback pocket
      • Smartphone and Tablet device holder
    • Sunscreen roller type
    • Tinted safety glass
      • Front windshield: laminated
      • Others: tempered
    • USB power supply
    • Windshield washers for front and rear
    • Windshield wipers for front and rear
    • 8” sub monitor
  • Monitoring System
    • Gauge: coolant temperature, fuel level, transmission oil temperature
    • Indicator lights:
      • clearance lights, control lever lock, fuel level, high beam, parking brake, preheat, turn signals, work lights, fan reverse indicator, seat belt indicator
      • Indicator on multifunction monitor: F-N-R shift position, gear shift position, clock, DEF alarm indicator, DEF level gauge, ECO indicator, forward/reverse selector switch indicator, hold display, hour meter, joystick steering indicator (optional), odometer, battery volt, speedometer, tachometer, transmission autoshifting indicator, Warning lights: air filter restriction, brake oil low pressure, communication system error, discharge warning, engine oil low pressure, engine warning, hydraulic oil level, low steering oil pressure, overheat, transmission warning, Lock-up converter
    • Indicator on sub monitor : payload checker, dual auto-leveler indicator rear obstacle detection and warning system (optional)
    • 38 languages selection
  • Electrical System
    • Alternator (95A)
    • Backup alarm
    • Battery disconnect switch
    • Large capacity batteries
    • Power outlet 12 V & 24 V
  • Lights
    • Clearance lights
    • LED brake & tail lights
    • LED headlights
    • LED working lights (4 front, 2 rear on cab & 2 rear)
    • Turn signals with hazard switch
    • Work lights
  • Power Train
    • Approach speed control
    • Automatic transmission with load sensing system
    • Clutch cut position switch
    • Differential
      • LSD (Limited Slip Differential, front and rear)
    • DSS (Down Shift Switch)
    • Forward/Reverse lever
    • Forward/Reverse selector switch
    • Lock-up clutch (torque converter)
    • Maximum gear limited switch
    • Power mode switch
    • Quick power switch
    • Travel mode selector (Auto1-Auto2)
  • Tires
    • 23.5R25 (L3) VJT
  • Miscellaneous
    • Articulation lock bar
    • Cab top rail
      • Front rail on the cab top
      • Rear rail on the cab top
    • Cab window cleaning foot plate
    • Counterweight, built-in
    • Drawbar with locking pin
    • Emergency steering
    • Fenders
      • 23.5R25 (Front & rear fenders with mud flaps)
    • Exclusive Global e-Service telematics
    • Lift and tie down hooks
    • Lift arm
      • Standard lift arm
    • On board information controller
    • Pilfer proof
      • Battery cover with locking bracket
      • Lockable engine cover
      • Lockable fuel refilling cap
    • Standard tool kit
    • Tool box
  • Hydraulic System
    • Electric control lever
      • For 3 spools control valve
        • Multi-Function lever and Proportional switch for 3rd function
      • 2 levers and AUX lever for 3rd function
        • Inside layout pattern (3rd – bucket – liftarm)
    • Quick coupler piping and switch
  • Cab
    • Camera & monitor
      • AERIAL ANGLE (Side and rear view camera)
    • Rear view mirrors
      • Outside (Heated, 2) electrical adjustment retractable mirror stay
  • Lights
    • Rotating lamp
  • Miscellaneous
    • Belly guard (Bolt on type) (front / rear)
    • Bucket cylinder guard
    • Fenders
      • 23.5R25 (Front & full covered rear fenders with mud flaps)
    • Lift arm
      • High lift arm

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hitachi
MODEL ZW250-7

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hitachi ZW250-7

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Hitachi ZW250-7 Loader for Sale

Gain Complete Control with An Efficient Powerhouse.

An integrated console and suspension seat with seat-mounted electric control levers reduce fatigue while giving you ultimate control. Approach speed control and a payload checker increase efficiency while placing you in command of loading operations.
GENERAL INFORMATION
Manufacturer
Hitachi
Model Year
Model
ZW250-7
Condition
NEW
Dimensions
Wheelbase
10’10”
Ground Clearance
1’4”
Turning Radius
19’11” (centerline of outside tire) 11’8” (inside of tires)
Overall Length
28’3” (Bolt-on Cutting edge; General Purpose Standard Arm) 28’9” (Weld-on teeth/segment edge; General Purpose Standard Arm) 28’5” (Bolt-on Cutting edge; General Purpose Standard Arm) 29’9” (Bolt-on Cutting edge; Light Material High-Lift Arm) Without Bucket 23’6” (Bolt-on Cutting edge and Weld-on teeth/segment edge; General Purpose Standard Arm) 25’ (Bolt-on Cutting edge; Light Material High-Lift Arm)
Overall Height
11’2” Overall Operating: -18’6” (Bolt-on Cutting edge; General Purpose Standard Arm) -18’7” (Weld-on teeth/segment edge; General Purpose Standard Arm) -20’ (Bolt-on Cutting edge; Light Material High-Lift Arm)
Operating Weight
46,100 lbs. (Bolt-on Cutting edge; General Purpose Standard Arm) 46,170 lbs. (Weld-on teeth/segment edge; General Purpose Standard Arm) 46,500 lbs. (Bolt-on Cutting edge; General Purpose Standard Arm) 47,290 lbs. (Bolt-on Cutting edge; Light Material High-Lift Arm)
Steering Angle
Each direction 37°; total 74°
Rear Axle
Trunnion support
Final Drive
Heavy-duty planetary, mounted inboard
Reach
3’7” (Bolt-on Cutting edge; General Purpose Standard Arm) 3’11” (Weld-on teeth/segment edge; General Purpose Standard Arm) 3’8” (Bolt-on Cutting edge; General Purpose Standard Arm & Light Material High-Lift Arm)
Width over Tires
9’5”
Tire Size
23.5R25 (L3) tires
Tread
7’3”
Loader Clearance Radius
23’4” (Bolt-on Cutting edge; General Purpose Standard Arm) 23’6” (Weld-on teeth/segment edge; General Purpose Standard Arm) 23’5” (Bolt-on Cutting edge; General Purpose Standard Arm) 24’ (Bolt-on Cutting edge; Light Material High-Lift Arm)
Steering Type
Articulated frame steering
Height of Bucket Pin
1’11”
Articulate Angle
37 degrees
Engine
Engine Make
Cummins
Engine Model
B6.7
Engine Type
Direct injection
Cylinders
6
Gross Horsepower
252 HP
Cooling
Water-cooled
Bore x Stroke
4.21” x 4.88”
Air Cleaner
Two element dry type with restriction indicator
Fuel Tank Capacity
80.6 Gallons
Battery
2 x 12 V
Aspiration
Turbocharger and intercooled
Cycles
4
Piston Displacement
408.0 cu. in
Engine Oil Capacity
6.6 Gallons
Torque Converter
Three element, single stage, single phase
After-Treatment
DPF and SCR system
Travel Speed
1st: 3.6 mph/3.8 mph 2nd: 6.3 mph /6.6 mph 3rd: 9.1 mph /14.2 mph 4th: 13.8 mph 5th: 21.1 mph
Filters
Full-flow 9 micron return filter in reservoir
Cooling Method
Forced circulation type
Type of Emission
Complies with EU stage V
Drivetrain
Axles
Semi-floating
Transmission
Torque converter, shaft type powershift with computer-controlled automatic shift and manual shift features included
Torque
Net: 875 lbf Gross: 859 lbf
Drive System
Four-wheel drive system
Brakes
Service brakes: Inboard mounted fully hydraulic 4 wheel disc brake. Front & rear independent brake circuit Parking brakes: Spring applied, hydraulically released, dry disc type with external output shaft
Hydraulic
Pump
Fixed Displacement Gear Pump
Hydraulic Cycle Time
Lift arm raise-5.3 seconds Lift arm lower-3.5 seconds Bucket dump-1.4 seconds Total-10.2 seconds
Hydraulic Bore x Stroke
Double acting type No. x Bore x Stroke: Arm: 2 x 5.1” x 37” Bucket: 1 x 6.5” x 20.9”
Operational
Bucket Width
10’2”
Dig Depth
0’5” (Standard Arm) 0’6” (High-Lift Arm)
Bucket Capacity
Heaped/Struck 4.8/4.3 (Bolt-on cutting edge, Weld-on teeth/segment edge General purpose standard arm & light material high-lift arm) 5.2/4.6 (Bolt-on cutting edge general purpose standard arm)
Front Axle
Fixed to the front frame
Flow
Main/Steering: 72.7 gallons Fan: 17.4 gallons
Breakout Force
34,690 lbs. (Bolt-on Cutting edge; General Purpose Standard Arm) 31,980 lbs. (Weld-on teeth/segment edge; General Purpose Standard Arm) 33,040 lbs. (Bolt-on Cutting edge; General Purpose Standard Arm) 31,920 lbs. (Bolt-on Cutting edge; Light Material High-Lift Arm)
Oscillation Angle
Total 24° (+12°, -12°)
Rollback Angle
50 degrees 44 degrees (Standard Arm)/45 degrees (High-Lift Arm) At full height: 60 degrees (Standard Arm)/53 degrees (High-Lift Arm)
Control Positions
Arm and bucket are controlled by multifunction lever Bucket controls with automatic bucket return-to-dig control
Dump Clearance
9’7” (Bolt-on Cutting edge; General Purpose Standard Arm) 9’3” (Weld-on teeth/segment edge; General Purpose Standard Arm) 9’6” (Bolt-on Cutting edge; General Purpose Standard Arm) 11’1” (Bolt-on Cutting edge; Light Material High-Lift Arm)
Hinge Pin Height
13’9” (Standard Arm) 15’3” (High-Lift arm)
Static Tipping Load
Straight/Full 37 degree 37,360 lbs./32,910 lbs. (Bolt-on Cutting edge; General Purpose Standard Arm) 37,270 lbs./32,840 lbs. (Weld-on teeth/segment edge; General Purpose Standard Arm) 32,590 lbs./28,710 lbs. (Bolt-on Cutting edge; General Purpose Standard Arm) 30,750 lbs./27,090 lbs. (Bolt-on Cutting edge; Light Material High-Lift Arm)
Main Clutch
Wet hydraulic, multi-disc type
Steering Cylinders
Double-acting piston type
Steering Bore x Stroke
2 x 2.8” x 21.3”
Arm Controls
Arm and bucket are controlled by multifunction lever; Arm: Four position valve; Raise, hold, lower, float.
Bucket Controls
Bucket controls with automatic bucket return-to-dig control; Three position valve; Roll back, hold, dump
Pressure
Main/Steering: 4260 PSI Fan: 2250 PSI
Lift Arm Clearance
12’7” (Standard Arm) 14’1” (High-lift Arm)
Departure Angle
28 degrees
Reduction and Differential Gear
Two stage reduction with limited slip differential
Steering Pump
Variable displacement axial plunger pump
Electrical
Sound Level
LpA 68 dB(A) (Sound level in cab according to ISO 6396: 2008) LwA 105 dB(A) (External sound level according to ISO 6395: 2008 and EU Directive 2000/14/EC)

Legal Notice: Manufacturer Name, Logo and Model Information are Registered Trademarks of the Manufacturer.
Specifications and other information are subject to change without notice. No representation of accuracy is made.
Image is believed to be in the public domain or used with permission.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
LOCATIONS
CAREERS
CONTACT
