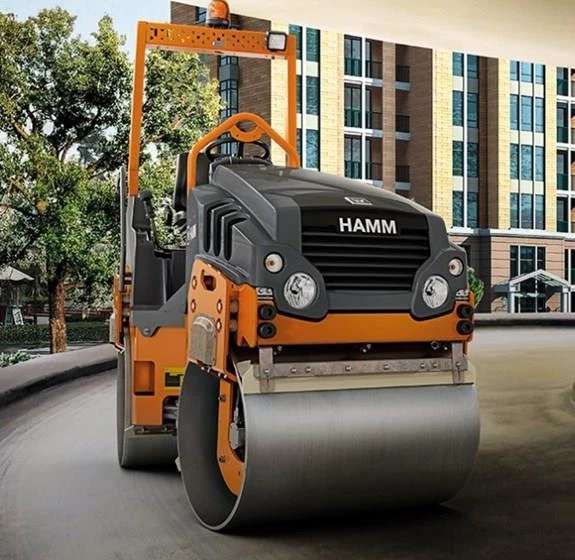

Hamm HD 9 VT

Hamm HD 9 VT Tandem Roller for Sale

The articulated compact rollers in the HD CompactLine, with operating weights of between 1.4 and 4.5 t, are real all-rounders for asphalt construction, earthwork and landscape gardening. Their operation is extremely easy and requires no special language skills. Moreover, the wasp-waist rollers impress on account of their optimum visibility and outstanding driving and handling characteristics attributable primarily to the three-point articulated swivel joint.

  • Clear Side — one-sided drum mounting
  • Simple transport, simple loading
  • Excellent view of drum edge, machine and construction site environment
  • Compact dimensions
  • Simple, intuitive and language-neutral control



  • Three-point articulation: Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints.  This allows optimum steering, excellent driving safety and maximum driving comfort.
Body
Center Distance 61.4”
Dimensions
Length 90.9”
Width 40.2”
Height 87”
Weight 3,616 lbs.
Ground Clearance 9.4”
Inside Turning Radius 83.9”
Centrifugal force 3,825 lbs. (front I)
2,475 lbs. (front II)
Width over Tires 35”
Number of Tires 4
Engine
Engine Make Kubota
Engine Model D1105
Cylinders 3
Horsepower 21.9 HP (Power ISO 14396)
21.6 HP (Power SAE J1349)
Fuel Tank Capacity 8.7 gallons
Emission Standards EU Stage V/EPA Tier 4
Drivetrain
Tires 190/60-R15
Steering Articulated steering
Climbing ability 30% (w/vibration)
40% (wo/vibration)
Operational
Drum Width 35.4”
Drum Diameter 24.4”
Drum Shell Thickness 0.5”
Vibration Frequency 3,660 VPM (front I)
2,880 VPM (front II)
Working Width 35.4”
Travel Speed - Forward 0,0-6,8
Water Tank Capacity 18.5 gallons
Static Linear Drum Load 44.2 lbs./in (front)
Oscillation Angle 8°
Drum Type Smooth/non-split; Tandem roller with vibrating roller drum and set of wheels
Amplitude 0.015” (front I/front II)
Water Sprinkling Type Pressure
Electrical
Sound Power 105 L(WA)
Weights
Operating Weight 3,616 lbs. (w/ROPS)
3,230 lbs. (empty wo/cab, wo/ROPS)
Axle Load 1,742 lbs. (front)
1,874 lbs. (rear)
  • Description: Tandem roller with vibrating roller drum and set of wheels
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 90.9”
  • Width: 40.2”
  • Total Height: 87”
  • Drum Width: 35.4”



  • 12 V power socket
  • Central lifting bracket
  • Water filter system (3-fold)
  • Automatic vibration system
  • V-belt protection
  • Pressure water sprinkling system
  • Clear Side
  • Dashboard cover, lockable and weather-resistant
  • Dashboard with displays, indicator lights and switches
  • 3-point articulation
  • Plastic scraper, folding
  • Tool kit
  • Water drain valve
  • Engine hood with sound insulation
  • Battery isolation switch
  • Rotating beacon
  • Working spotlights
  • Back-up alarm
  • Automatic engine stop
  • Protective roof
  • Additional drive lever, left

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HD 9 VT

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.
