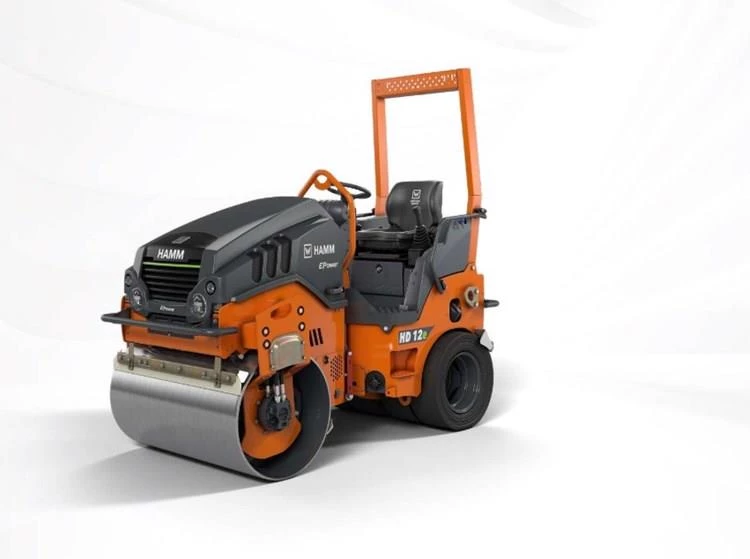

New Hamm HD 12e VT Tandem Roller for Sale

Tandem roller with vibrating roller drum and set of wheels

  • Electrical operation, with no compromise on driving or compacting performance
  • Simple, intuitive and language-neutral control
  • Recuperation for extended lifetime
  • High efficiency from electric motors for vibration/oscillation
  • Zero local emissions, with low noise

Technologies

  • Three-point articulation: Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints.  This allows optimum steering, excellent driving safety and maximum driving comfort.
  • Electric Rollers: Demand for low-emission or even zero-emission construction machines keeps growing. And the road construction and earthworks sector is no exception to this trend.  HAMM has factored this into its product development, enabling customers around the world to benefit from quiet and emission-free compaction with electric rollers
Body
Center Distance 66.9”
Dimensions
Length 99.6”
Width 51.6”
Height 97.4”
69.0” (loading)
Weight 6,858 lbs.
5,887 lbs. w/ROPS
5,369 lbs. wo/ROPS, wo/cab
Ground Clearance 11”
Inside Turning Radius 93.3”
Curb Clearance 22.4” (left/right)
Centrifugal force 9,225 lbs. Front I
5,625 lbs. Front II
Width over Tires 44.9”
Tire Size 9,5/65-15
Number of Tires 4 (rear)
Engine
Wheel Load 714 lbs. (rear) per tire
Drivetrain
Steering Articulated steering
Speeds 0-6 mph
Operational
Gradeability 40% with vibration
44% without vibration
Drum Width 47.2”
Drum Diameter 28.3” front
Drum Shell Thickness 0.6” front
Vibration Frequency 3,900 VPM Front I
3,060 VPM Front II
Working Width 48”
Water Tank Capacity 47.6 Gallons
Static Linear Drum Load 64.2 lbs./in. front
Drum Type Smooth/non-split
Track Offset 0.0” (left)
2.0” (right)
Amplitude 0.020” Front I & II
Water Sprinkling Type Pressure
Swing Angle 8°
Additive Tank Capacity 4.8 Gallons
Electrical
Battery Capacity 23,4 kWh
Battery Type NMC lithium-ion
Sound Power 104 db(A) guaranteed
99 db(A) representative measurement
Battery Plug Type CEE 7/4 (earthed type F); CEE 16 A for 230 V/400 V Plug Type
Nominal Voltage 48 V
Weights
Axle Load 3,032 lbs. front
2,855 lbs. rear
3,462 lbs. front @ max. operating weight
3,396 lbs. rear @ max. operating weight
  • Description: Tandem roller with vibrating roller drum and set of wheels
  • Total Length: 99.6”
  • Width: 51.6”
  • Total Height: 97.4”
  • Drum Width: 47.2”
  • Height, loading, min: 69”
  • 12 V socket + USB
  • Central water outlet
  • Central lifting bracket
  • Water filter system (3-fold)
  • Automatic vibration system
  • CompactLine front towing eye
  • Track offset, mechanical
  • Drive lever, left and right
  • Driver’s platform with access from both sides
  • Pressure water sprinkling system
  • Dashboard cover, lockable and weather-resistant
  • Dashboard with displays, indicator lights and switches
  • 3-point articulation
  • ROPS, folding
  • Drum edge lighting
  • Rotating beacon
  • Working spotlights
  • JDLink
  • Back-up alarm
  • HAMM Temperature Meter (HTM)
  • HAMM Compaction Meter (HCM)
  • Edge pressing and cutting equipment
  • Protective roof
  • Seat belt monitoring device
