Hamm HD 12 P VV

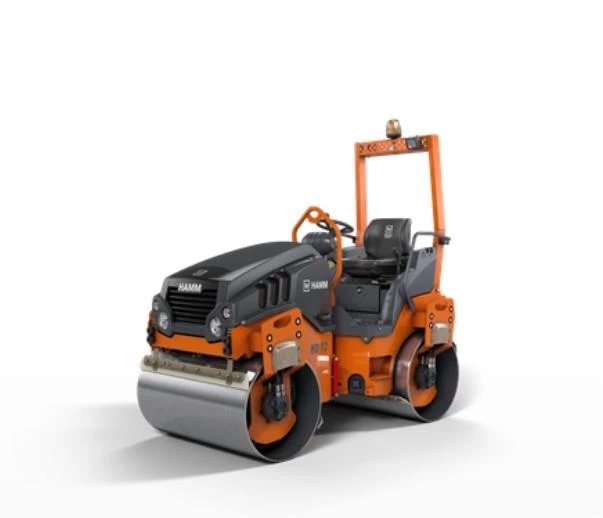

New HAMM

New HAMM HD 12 P VV Tandem Roller for Sale

  • Simple transport, simple loading
  • Compact dimensions
  • Excellent view of drum edge, machine and construction site environment
  • Ergonomic driver platform
  • Simple, intuitive and language-neutral control



Tech

  • 3-Point Articulation: 3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Specs
French Classification 11.3/PV3
Body
Center Distance 66.9”
Dimensions
Length 99.6”
Width 51.6”
Height 97.4” w/ROPS
Ground Clearance 11.0” (center)
Turning Radius 93.3”
Steering Angle 32°
Curb Clearance 22.4” (left/right)
Centrifugal force 8,550 lbs./5,175 lbs. (front & rear, level I/II)
Height Loading 69”
Engine
Engine Model D1703-M-DI-E4B
Cylinders 3
Horsepower 24.8 HP
Fuel Tank Capacity 11.1 Gallons
Emission Standards EPA Tier 4
Operational
Gradeability 30% (w/vibration)/40% (wo/vibration)
Drum Width 47.2” (front/rear)
Drum Diameter 28.3” (front/rear)
Drum Shell Thickness 0.6” (front/rear)
Vibration Frequency 65 Hz/51 Hz (front & rear, level I/II)
Working Width 49.2”
Travel Speed - Forward 6.3 MPH
Water Tank Capacity 47.6 Gallons
Static Linear Drum Load 62.2 lbs./in (front)
63.3 lbs./in (rear)
Drum Type Smooth/Non-Split (front/rear)
Track Offset 0.0”/2.0” (left/right)
Amplitude 0.18” (front & rear, level I/II)
Water Sprinkling Type Pressure
Steering Type Articulated
Pendulum Angle 8°
Electrical
Sound Power 106 db(A) (guaranteed)/104 db(A) (representative measurement)
Weights
Operating Weight 7,519 lbs.
5,942 lbs. (w/ROPS)
5,41 lbs. (empty weight wo/cab, wo/ROPS)
Axle Load 2,944 lbs. (front)
2,999 lbs. (rear)
  • Description: Tandem roller with two vibration drums
  • Exhaust Emissions Category: EPA Tier 4
  • Total Length: 99.6”
  • Width: 51.6”
  • Total Height: 97.4”
  • Drum Width: 47.2”
  • Height, loading, min: 69”



  • 12 V power socket
  • 3-point articulation
  • Dashboard with displays, indicator lights and switches
  • Dashboard cover, lockable and weather-resistant
  • Pressure water sprinkling system
  • Driver’s platform with access from both sides
  • Drive lever, left and right
  • V-belt protection
  • Mechanical battery isolation switch
  • Vibration-isolated driver's platform
  • Track offset, mechanical
  • CompactLine front towing eye
  • Automatic vibration system
  • Water filter system (3-fold)
  • Central lifting bracket
  • Central water outlet
  • Plastic scraper, folding
  • ROPS, folding
  • Metal protective roof on ROPS (FOPS, level I)
  • Exterior rear-view mirror
  • Compaction meter
  • Working spotlights
  • Drum edge lighting
  • Automatic engine stop
  • Battery isolation switch
  • Sound insulation

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HD 12 P VV

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HD 12 P VV

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New HAMM HD 12 P VV Tandem Roller for Sale

  • Simple transport, simple loading
  • Compact dimensions
  • Excellent view of drum edge, machine and construction site environment
  • Ergonomic driver platform
  • Simple, intuitive and language-neutral control



Tech

  • 3-Point Articulation: 3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HD 12 P VV
Condition
NEW
Specs
French Classification
11.3/PV3
Body
Center Distance
66.9”
Dimensions
Length
99.6”
Width
51.6”
Height
97.4” w/ROPS
Ground Clearance
11.0” (center)
Turning Radius
93.3”
Steering Angle
32°
Curb Clearance
22.4” (left/right)
Centrifugal force
8,550 lbs./5,175 lbs. (front & rear, level I/II)
Height Loading
69”
Engine
Engine Model
D1703-M-DI-E4B
Cylinders
3
Horsepower
24.8 HP
Fuel Tank Capacity
11.1 Gallons
Emission Standards
EPA Tier 4
Operational
Gradeability
30% (w/vibration)/40% (wo/vibration)
Drum Width
47.2” (front/rear)
Drum Diameter
28.3” (front/rear)
Drum Shell Thickness
0.6” (front/rear)
Vibration Frequency
65 Hz/51 Hz (front & rear, level I/II)
Working Width
49.2”
Travel Speed - Forward
6.3 MPH
Water Tank Capacity
47.6 Gallons
Static Linear Drum Load
62.2 lbs./in (front) 63.3 lbs./in (rear)
Drum Type
Smooth/Non-Split (front/rear)
Track Offset
0.0”/2.0” (left/right)
Amplitude
0.18” (front & rear, level I/II)
Water Sprinkling Type
Pressure
Steering Type
Articulated
Pendulum Angle
8°
Electrical
Sound Power
106 db(A) (guaranteed)/104 db(A) (representative measurement)
Weights
Operating Weight
7,519 lbs. 5,942 lbs. (w/ROPS) 5,41 lbs. (empty weight wo/cab, wo/ROPS)
Axle Load
2,944 lbs. (front) 2,999 lbs. (rear)
