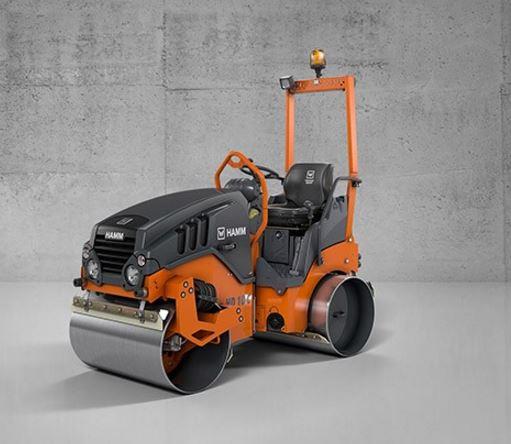

New Hamm HD 10C VV Compactor for Sale

Articulated tandem roller with 2 vibratory drums

  • Optimum front view due to concaving front end
  • Modern instrument panel
  • Low machine height
  • 3-point swivel joint for optimum driving comfort
  • Central suspension point
  • Clear Side — one-sided drum mounting
  • Low working platform, high tilt resistance
Dimensions
Length 88.9 in. (2,260 mm)
Width 41.5 in. (1,056 mm)
Height 87 in. (2,210 mm)
Weight 3,682.35lbs
Wheelbase 61.4 in. (1,560 mm)
Inside Turning Radius 83.9 in. (2,130 mm)
Steering Angle +/-33°
Drum Smooth/Non-Split
Engine
Engine Make Kubota
Engine Model D1005-E3B
Engine Type 3-cylinder
Horsepower 20 hp (14.8 kW) @ 2,700 rpm
Fuel Tank Capacity 8.7 gal. (33 l)
Drivetrain
Drive Hydrostatic
Operational
Drum Width 39.37 in. (1,000 mm)
Drum Diameter 24.4 in. (620 mm)
Nominal Amplitude Front I / II: 0.018 in. (0.45 mm)
Vibration Frequency Front I / II: 3,120 / 3,900 vpm (52 / 65 Hz)
Centrigual Force Range Front I / II: 3,600 / 5,625 lbs. (16 / 25 kN)
Travel Speed - Forward 0 - 6.8 mph (0 - 11 km/h)
Water Tank Capacity 18.5 gal. (70 l)
Application Asphalt
Static Linear Drum Load 45.3 lbs./in. (8.1 kg/cm) front
48.1 lbs./in. (8.6 kg/cm) rear
Weights
Operating Weight 4,299 lbs. (1,950 kg) maximum
3,682 lbs. (1,670 kg) with ROPS
Axle Load 1,797 lbs. (815 kg) front
1,885 lbs. (855 kg) rear
  • Description: Tandem roller with two vibrating roller drums
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 90.4”
  • Width: 42.1”
  • Total Height: 87”
  • Drum Width: 39.4” (front and rear)
  • Height, loading, min: 62.2”
  • 12 V outlet
  • Central lifting bracket
  • Water filtering (triple)
  • Automatic vibration system
  • V-belt protection
  • Operator’s platform with entry from both sides
  • Pressure water sprinkling with interval switch
  • Clear Side
  • Dashboard cover, lockable and weather-resistant
  • Dashboard with displays, indicator lights and switches
  • 3-point articulation
  • Plastic scraper, foldable
  • Tool kit
  • Additional mirror
  • Water drain valve
  • Bonnet with sound insulation
  • Battery isolating switch
  • Rotating beacon
  • Working light
  • Back-up alarm
  • Automatic engine-off function
  • Protective roof
  • Additional drive lever, left
