Hamm HD 10 P VT

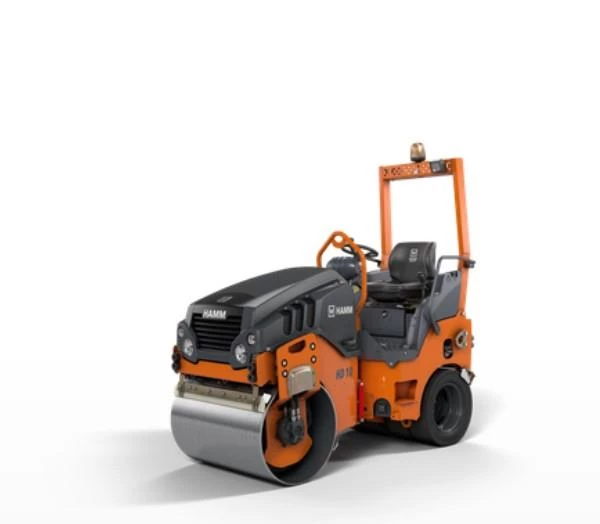

New HAMM Compactor

New HAMM HD 10 P VT Tandem Roller for Sale

  • Compact dimensions
  • Ergonomic driver platform
  • Excellent view of drum edge, machine and construction site environment
  • Simple, intuitive and language-neutral control
  • Simple transport, simple loading

Tech

  • 3-Point Articulation: 3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Specs
French Classification 12.1/PV2
Body
Center Distance 66.9”
Dimensions
Length 99.6”
Width 43.7”
Height 97.4” w/ROPS
Ground Clearance 11.0” (center)
Turning Radius 97.2”
Steering Angle 32°
Curb Clearance 22.4” (left/right)
Centrifugal force 7,425 lbs./4,500 lbs. (front, level I/II)
Width over Tires 39.4” (rear)
Tire Size 205/60-R15 (rear)
Number of Tires 4 (rear)
Height Loading 69”
Engine
Engine Make Kubota
Engine Model D1703-M-DI-E4B
Cylinders 3
Horsepower 24.8 HP
Fuel Tank Capacity 11.1 Gallons
Emission Standards EPA Tier 4
Wheel Load 648 lbs. (per tire, rear)
Operational
Gradeability 30% (w/vibration)/40% (wo/vibration)
Drum Width 39.4” (front/rear)
Drum Diameter 28.3” (front/rear)
Drum Shell Thickness 0.6” (front)
Vibration Frequency 65 Hz/51 Hz (front, level I/II)
Working Width 41.3”
Travel Speed - Forward 6.0 MPH
Water Tank Capacity 47.6 Gallons
Static Linear Drum Load 67.8 lbs./in (front)
Drum Type Smooth/Non-Split (front)
Track Offset 0.0”/2.0” (left/right)
Amplitude 0.18” (front, level I/II)
Water Sprinkling Type Pressure
Steering Type Articulated
Pendulum Angle 8°
Electrical
Sound Power 106 db(A) (guaranteed)/104 db(A) (representative measurement)
Weights
Operating Weight 6,858 lbs.
5,259 lbs. (w/ROPS)
4,705 lbs. (empty weight wo/cab, wo/ROPS)
Axle Load 2,668 lbs. (front)
2,591 lbs. (rear)
  • Description: Tandem roller with vibration drum and set of wheels
  • Exhaust Emissions Category: EPA Tier 4
  • Total Length: 99.6”
  • Width: 43.7”
  • Total Height: 97.4”
  • Drum Width: 39.4”
  • Height, loading, min: 69”



  • 12 V power socket
  • 3-point articulation
  • Dashboard with displays, indicator lights and switches
  • Dashboard cover, lockable and weather-resistant
  • Pressure water sprinkling system
  • Driver’s platform with access from both sides
  • Drive lever, left and right
  • V-belt protection
  • Mechanical battery isolation switch
  • Vibration-isolated driver's platform
  • Track offset, mechanical
  • CompactLine front towing eye
  • Automatic vibration system
  • Water filter system (3-fold)
  • Central lifting bracket
  • Central water outlet
  • Plastic scraper, folding
  • ROPS, folding
  • Metal protective roof on ROPS (FOPS, level I)
  • Exterior rear-view mirror
  • Compaction meter
  • Working spotlights
  • Drum edge lighting
  • Automatic engine stop
  • Battery isolation switch
  • Sound insulation

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
