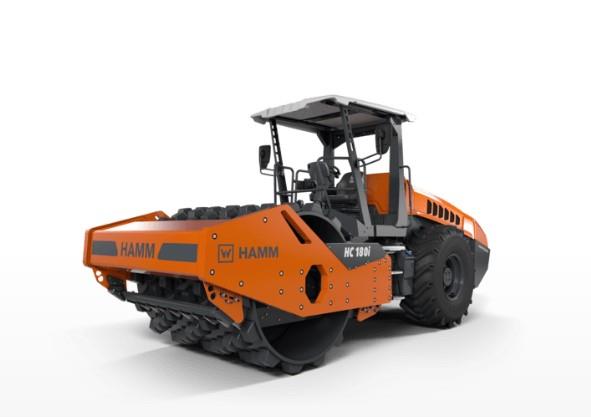

New Hamm HC 180i P Compactor for Sale

The compactors of the HC series offer an innovative and powerful complete package for earthmoving. With impressive compaction performance, intuitive handling and maximum driving comfort, the single-drum compactors are ideally suited for almost all earthmoving tasks. The compactors of the HC series are also characterized by environmentally friendly and modern engines.

  • High compaction performance
  • Spacious driver's platform with Easy Drive operating concept
  • Hammtronic for high comfort, safety and reduced emissions
  • Customised configuration possibilities and a wide range of options
  • Digital ready
Dimensions
Length 258.8”
Width 97.4”
Height 119.6”
Weight 38,896 lbs.
Wheelbase 128.6”
Ground Clearance 16.7”
Inside Turning Radius 162.9”
Curb Clearance 18.2” (left/right)
Centrifugal force 74,250 lbs./58,500 lbs. (Front I/II)
Width over Tires 84.3” (Rear)
Tire Size TR 23.1-26 12 PR
Front Slope Angle 31.6°
Rear Slope Angle 25.7°
Engine
Engine Make Deutz
Engine Model TCD 6.1 L6
Cylinders 6
Horsepower 214.7 HP
Fuel Tank Capacity 88.8 Gallons
Emission Standards EU Stage V/EPA Tier 4
Drivetrain
Tires 2 (Rear)
Steering Articulated Steering
Speeds 0.0-7.4 mph
Climbing ability 55%/61%
Drive Regulation Hammtronic
Operational
Drum Width 84.3”
Drum Diameter 66.1”
Drum Shell Thickness 1.2”
Vibration Frequency 1680/1860 VPM (Front, I/II)
Static Linear Drum Load 297.9 lbs./in. (Front)
Oscillation Angle ±12° (max)
Padfeet 3.9” (Height)
130 (Number)
Drum Type Padfoot
Amplitude 0.085”/0.053” (Front I/II)
Weights
Operating Weight 40,550 lbs. (max)
38,896 lbs. (w/cab)
38,158 lbs. (w/ROPS)
36,239 lbs. (no cab, wo/ROPS)
Axle Load 25,104 lbs. (Front)
13,792 lbs. (Rear)
25,159 lbs. (Front Max)
15,391 lbs. (Rear Max)
  • Description: Compactor with padfoot drum
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 258.8”
  • Width: 97.4”
  • Total Height: 119.6”
  • Drum Width: 84.3”
  • Height, loading, min: 119.6”



  • 12 V outlets (double)
  • 2 large working and rear view mirrors
  • 3-point articulation
  • Dashboard with displays, indicator lights and function key
  • Operating concept Easy Drive
  • ECO mode
  • Speed preselect
  • Hose protection on front vehicle
  • Vibration-isolated operator’s platform
  • Automatic vibration system
  • Traction Control, manual
  • Steel scraper, for padfoot drum
  • Traction Control, automatic
  • ROPS cabin with heating and air conditioning, FOPS-approved (level I)
  • Safety belt monitoring device
  • Armrest comfort setting, left
  • Auxiliary heater
  • Tachograph
  • Fire-extinguisher
  • Bluetooth interface for Smart Doc
  • Dozer blade
  • Frequency regulation
  • Automatic engine-off function
  • Camera system
  • Back-up alarm
  • Working light
  • Rotating beacon
  • Engine hood with electrical easy access engine cover release
  • Coming home lighting
  • Battery isolating switch
  • Additional mirror
  • Tool kit

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HC 180i P

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HC 180i P

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Hamm HC 180i P Compactor for Sale

The compactors of the HC series offer an innovative and powerful complete package for earthmoving. With impressive compaction performance, intuitive handling and maximum driving comfort, the single-drum compactors are ideally suited for almost all earthmoving tasks. The compactors of the HC series are also characterized by environmentally friendly and modern engines.

  • High compaction performance
  • Spacious driver's platform with Easy Drive operating concept
  • Hammtronic for high comfort, safety and reduced emissions
  • Customised configuration possibilities and a wide range of options
  • Digital ready
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HC 180i P
Condition
NEW
Dimensions
Length
258.8”
Width
97.4”
Height
119.6”
Weight
38,896 lbs.
Wheelbase
128.6”
Ground Clearance
16.7”
Inside Turning Radius
162.9”
Curb Clearance
18.2” (left/right)
Centrifugal force
74,250 lbs./58,500 lbs. (Front I/II)
Width over Tires
84.3” (Rear)
Tire Size
TR 23.1-26 12 PR
Front Slope Angle
31.6°
Rear Slope Angle
25.7°
Engine
Engine Make
Deutz
Engine Model
TCD 6.1 L6
Cylinders
6
Horsepower
214.7 HP
Fuel Tank Capacity
88.8 Gallons
Emission Standards
EU Stage V/EPA Tier 4
Drivetrain
Tires
2 (Rear)
Steering
Articulated Steering
Speeds
0.0-7.4 mph
Climbing ability
55%/61%
Drive Regulation
Hammtronic
Operational
Drum Width
84.3”
Drum Diameter
66.1”
Drum Shell Thickness
1.2”
Vibration Frequency
1680/1860 VPM (Front, I/II)
Static Linear Drum Load
297.9 lbs./in. (Front)
Oscillation Angle
±12° (max)
Padfeet
3.9” (Height) 130 (Number)
Drum Type
Padfoot
Amplitude
0.085”/0.053” (Front I/II)
Weights
Operating Weight
40,550 lbs. (max) 38,896 lbs. (w/cab) 38,158 lbs. (w/ROPS) 36,239 lbs. (no cab, wo/ROPS)
Axle Load
25,104 lbs. (Front) 13,792 lbs. (Rear) 25,159 lbs. (Front Max) 15,391 lbs. (Rear Max)
