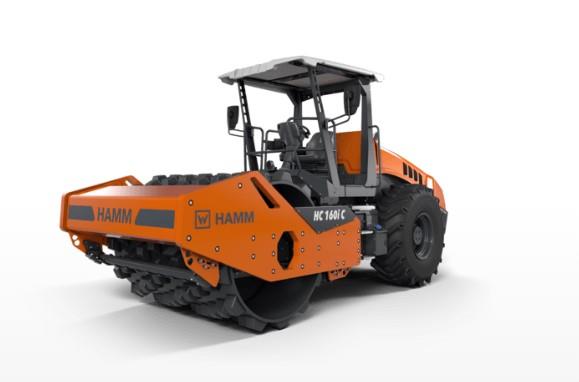

New Hamm HC 160i C Compactor for Sale The compactors of the HC series offer an innovative and powerful complete package for earthmoving. With impressive compaction performance, intuitive handling and maximum driving comfort, the single-drum compactors are ideally suited for almost all earthmoving tasks. The compactors of the HC series are also characterized by environmentally friendly and modern engines.
|
| Dimensions | |
|---|---|
| Length | 248.6” |
| Width | 97.4” |
| Height | 120.2” |
| Weight | 36,140 lbs. |
| Wheelbase | 128.6” |
| Ground Clearance | 18.1” |
| Inside Turning Radius | 162.6” |
| Curb Clearance | 18.8” (left/right) |
| Centrifugal force | 74,250 lbs./58,500 lbs. (Front I/II) |
| Width over Tires | 83.5” (Rear) |
| Tire Size | AW 23.1-26 12 PR |
| Front Slope Angle | 34.2° |
| Rear Slope Angle | 23.7° |
| Engine | |
|---|---|
| Engine Model | JDPS 4045PSS |
| Cylinders | 4 |
| Horsepower | 160.4 HP |
| Fuel Tank Capacity | 74 Gallons |
| Emission Standards | EU Stage V/EPA Tier 4 |
| Drivetrain | |
|---|---|
| Tires | 2 (Rear) |
| Steering | Articulated Steering |
| Speeds | 0.0-7.4 mph |
| Climbing ability | 56%/62% |
| Drive Regulation | Hammtronic |
| Operational | |
|---|---|
| Drum Width | 84.3” |
| Drum Diameter | 59.2” |
| Drum Shell Thickness | 1.8” |
| Vibration Frequency | 1680/1860 VPM (Front, I/II) |
| Static Linear Drum Load | 283.8 lbs./in. (Front) |
| Oscillation Angle | ±12° (max) |
| Drum Type | Smooth |
| Amplitude | 0.083”/0.053” (Front I/II) |
| Weights | |
|---|---|
| Operating Weight | 42,204 lbs. (max) 36,140 lbs. (w/cab) 35,875 lbs. (w/ROPS) 33,990 lbs. (no cab, wo/ROPS) |
| Axle Load | 23,913 lbs. (Front) 12,227 lbs. (Rear) 29,040 lbs. (Front Max) 13,164 lbs. (Rear Max) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Hamm |
| MODEL | HC 160i C |
