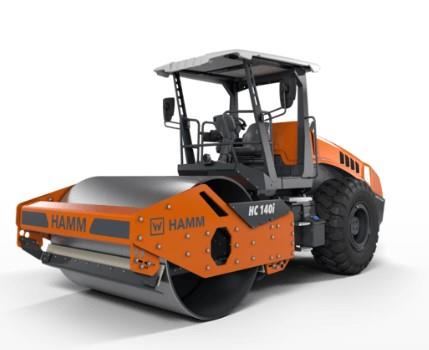

New Hamm HC 140i Compactor for Sale The compactors of the HC series offer an innovative and powerful complete package for earthmoving. With impressive compaction performance, intuitive handling and maximum driving comfort, the single-drum compactors are ideally suited for almost all earthmoving tasks. The compactors of the HC series are also characterized by environmentally friendly and modern engines.
|
| Dimensions | |
|---|---|
| Length | 240.8” |
| Width | 97.4” |
| Height | 120.2” |
| Weight | 31,300 lbs. |
| Wheelbase | 128.6” |
| Ground Clearance | 18.1” |
| Inside Turning Radius | 162.6” |
| Curb Clearance | 18.8” (left/right) |
| Centrifugal force | 65,250 lbs./49,500 lbs. (Front I/II) |
| Width over Tires | 83.5” (Rear) |
| Tire Size | AW 23.1-26 12 PR |
| Front Slope Angle | 34.2° |
| Rear Slope Angle | 23.7° |
| Engine | |
|---|---|
| Engine Make | John Deere |
| Engine Model | JDPS 4045PSS |
| Cylinders | 4 |
| Horsepower | 160.4 HP |
| Fuel Tank Capacity | 74 Gallons |
| Emission Standards | EU Stage V/EPA Tier 4 |
| Drivetrain | |
|---|---|
| Tires | 2 |
| Steering | Articulated Steering |
| Speeds | 0.0-7.5 mph |
| Climbing ability | 51%/57% |
| Drive Regulation | Hammtronic |
| Operational | |
|---|---|
| Drum Width | 84.3” |
| Drum Diameter | 59.2” |
| Drum Shell Thickness | 1.2” |
| Vibration Frequency | 1800/2160 VPM (Front, I/II) |
| Static Linear Drum Load | 224.7 lbs./in. (Front) |
| Oscillation Angle | ±12° (max) |
| Drum Type | Smooth |
| Amplitude | 0.081”/0.043” (Front I/II) |
| Weights | |
|---|---|
| Operating Weight | 37,639 lbs. (Max) 31,035 lbs. (w/ROPS) 31,300 lbs. (w/cab) 29,150 lbs. (no cab, wo/ROPS) |
| Axle Load | 18,930 lbs. (Front) 12,370 lbs. (Rear) 24,409 lbs. (Front Max) 13,230 lbs. (Rear Max) |
