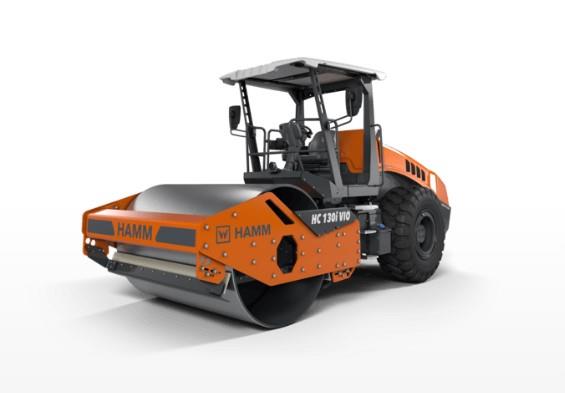

New Hamm HC 130i VIO Compactor for Sale The compactors of the HC series offer an innovative and powerful complete package for earthmoving. With impressive compaction performance, intuitive handling and maximum driving comfort, the single-drum compactors are ideally suited for almost all earthmoving tasks. The compactors of the HC series are also characterized by environmentally friendly and modern engines.
|
| Dimensions | |
|---|---|
| Length | 240.8” |
| Width | 97.4” |
| Height | 120.2” |
| Wheelbase | 128.6” |
| Ground Clearance | 18.1” |
| Inside Turning Radius | 162.6” |
| Curb Clearance | 18.8” (left/right) |
| Centrifugal force | 63,000 lbs. |
| Width over Tires | 83.5” |
| Tire Size | AW 23.1-26 12 PR |
| Front Slope Angle | 34.2° |
| Rear Slope Angle | 23.7° |
| Engine | |
|---|---|
| Engine Model | JDPS 4045PSS |
| Cylinders | 4 |
| Horsepower | 162.6 HP (Power ISO 14396) 160.4 HP (Power SAE J1349) |
| Fuel Tank Capacity | 74 GPM |
| Emission Standards | EU Stage V/EPA Tier 4 |
| Wheel Load | 6,185 lbs. (per rear tire) |
| Drivetrain | |
|---|---|
| Tires | 2 Tires |
| Steering | Articulated |
| Speeds | 0.0-7.5 |
| Climbing ability | 58% |
| Drive Regulation | Hammtronic |
| Operational | |
|---|---|
| Drum Width | 84.3” |
| Drum Diameter | 59.2” |
| Drum Shell Thickness | 0.8” |
| Vibration Frequency | 1,980 VPM |
| Working Width | 84.3” |
| Static Linear Drum Load | 198.8 lbs./in |
| Oscillation Angle | ±12° (max) |
| Drum Type | Smooth, VIO |
| Oscillation Force | 51,795 lbs. |
| Oscillation Frequency | 1,800 VPM |
| Tangential Amplitude | 0.064” |
| Amplitude | 0.077” |
| Weights | |
|---|---|
| Operating Weight | Max: 38,918 lbs. W/ROPS: 28,863 lbs. No Cab wo/ROPS: 26,978 lbs. W/Cab: 29,128 lbs. |
| Axle Load | Rear: 12,370 lbs. Front: 16,758 lbs. |
