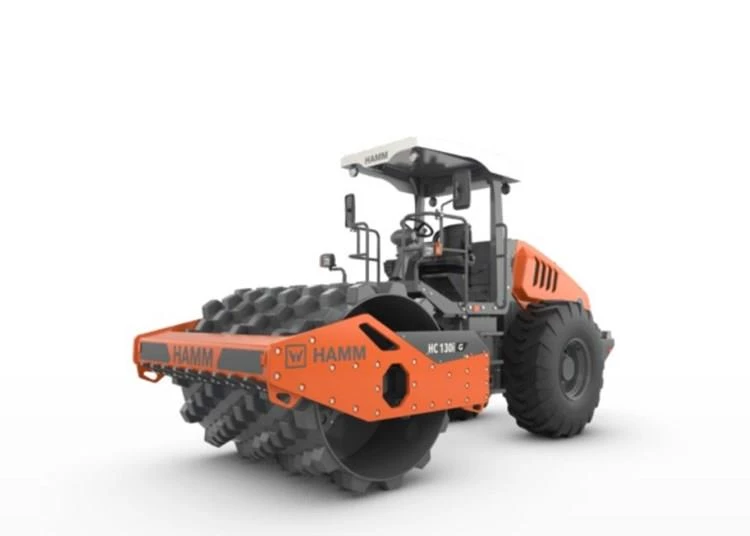

New Hamm HC 130i G P Compactor for Sale.

The compactors of the HC series offer an innovative and powerful complete package for earthmoving. With impressive compaction performance, intuitive handling and maximum driving comfort, the single-drum compactors are ideally suited for almost all earthmoving tasks. The compactors of the HC series are also characterized by environmentally friendly and modern engines.

  • Engine with best in class power and powerful ECO mode
  • 3-point articulation for excellent traction and cross-country mobility
  • High compaction performance
  • Intuitive and language-neutral operation
  • Easy maintenance and servicing
  • Excellent view of machine and construction site
Specs
French Classification 48,1/VPM3
Body
Center Distance 117.8”
Dimensions
Length 233.3”
Width 89.8”
Height 120.5”
Ground Clearance 17.6”
Turning Radius 152.9”
Steering Angle 33°
Curb Clearance 19.7”
Centrifugal force 56,250 lbs. (front, level I)/32,625 lbs. (front, level II)
Width over Tires 84.3”
Tire Size AW 23.1-26 8 PR
Front Slope Angle 45°
Rear Slope Angle 27°
Number of Tires 2
Engine
Engine Make Deere
Engine Model JDPS 4045EWS
Cylinders 4
Horsepower 114 HP
Fuel Tank Capacity 71.3 Gallons
Emission Standards EPA Tier 4
Wheel Load 6,477 lbs. (rear per tire)
Load 88.1” (height)
Drivetrain
Steering Articulated Steering
Operational
Gradeability 54% (w/vibration)/60% (wo/vibration)
Drum Width 84.3”
Drum Diameter 67.2”
Drum Shell Thickness 0.6”
Vibration Frequency 1800 VPM (front, level I)/2,100 VPM (front, level II)
Working Width 84.3”
Travel Speed - Forward 0-5.3 MPH (Working Gear)
0-6.7 MPH (Transport Gear)
Static Linear Drum Load 199.2" (front)
Drum Type Padfoot
Amplitude .071” (front, level I)/.031” (front, level II)
Number of Padfeet 130
Padfeet Height 4.4”
AdBlue Tank Capacity 8.5 Gallons
Pendulum Angle 10°
Electrical
Sound Power 107 db(A) (guaranteed)/105 db(A) (representative measurement)
Weights
Operating Weight 29,988 lbs.
29,745 lbs. (w/cab)
29,018 lbs. (w/ROPS)
27,585 lbs. (w/empty weight wo/cab, wo/ROPS)
Axle Load 16,791 lbs. (front)/12,954 lbs. (rear)
16,912 lbs. (max operating, front)/13,076 lbs. (max operating, rear)
  • Description: Compactor with padfoot drum
  • Exhaust Emissions Category: EPA Tier 4
  • Weight: 29,745 lbs.
  • Drum Width: 84.3”
  • Total Length: 233.3”
  • Width: 84.3”
  • Total Height: 120.5”
  • Height, loading, min: 88.1”



  • Dashboard with displays, indicator lights and switches
  • Driver's platform with access on one side
  • Vibration-isolated driver's platform
  • Seat length adjustment
  • 1 drive lever
  • ECO mode
  • Tiltable engine hood
  • Hydrostatic steering
  • 3-point articulation
  • Emergency stop
  • Adjustable scraper
  • Work lighting, 4-fold, high-power LED
  • Back-up alarm
  • Battery isolation switch
  • Hose protection on the front vehicle
  • Chock
  • Tool kit
  • Process data interface for third-party provider systems, earthworks
  • Compaction meter
  • Speedometer
  • John Deere Operations Center
  • Rotating beacon
  • Automatic vibration system
  • Tool kit

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
