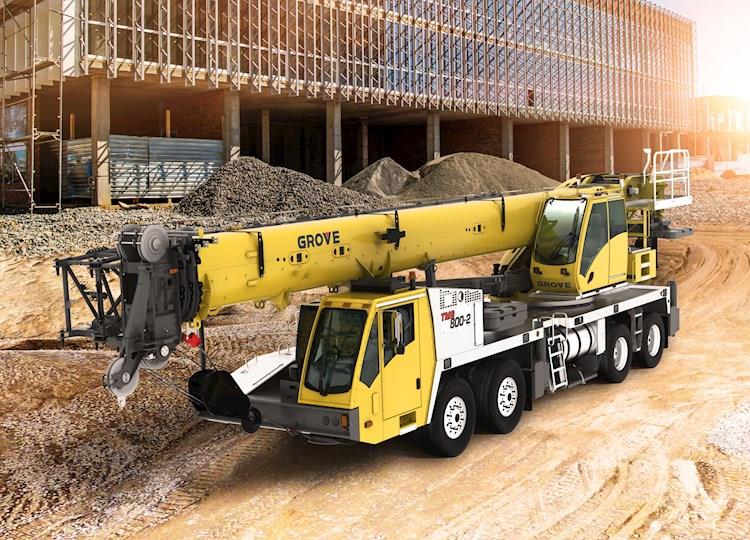

New Grove TMS800-2 Truck Crane for Sale The TMS800-2 brings the latest truck crane technologies from Grove to the 80-ton size class. The new lightweight carrier design capably roads up to 28,000 lb of counterweight with no fall-off loads or wing weights and has capacities that are up to 26% stronger than its closest competitor.
|
Body | |
---|---|
Chassis | Torsionally rigid frame, four-axle carrier, fabricated from high strength, low alloy steel with towing and tie-down lugs. |
Cab | Super Structure: All aluminum construction cab with acoustical lining tilts hydraulically to +20° and includes tinted safety glass, air conditioning, adjustable operator’s seat with hydraulic suspension, hinged front (with wiper) and rear windows, sun visor and window shade. Other features include diesel heater/defroster, stereo radio/disc player, armrest integrated crane controls, and ergonomically arranged instrumentation. Lower Carriage: Single-driver design, aluminum fabricated with acoustical lining and tinted safety glass. Air conditioning. Fabric covered seat with air adjustment. Driving controls and engine instrumentation including tilt telescope multifunction steering wheel, tachometer, speedometer, trip meter, voltmeter, water temp., oil, fuel level, air pressure gauge, engine high temp./low oil pressure A/V warning. Other standard items include display for back-up and passenger side cameras, hot water heater/defroster, electric windshield wash/wipe, fire extinguisher, wireless rigging remote with battery charging station, seat belt and door lock. |
Dimensions | |
---|---|
Turning Radius | 45.4’ |
Max Tip Height | 137’ |
Engine | |
---|---|
Engine Make | Cummins X |
Engine Type | Turbo charged and after cooled diesel engine |
Cylinders | 12 six-cylinder |
Horsepower | 475 bhp |
Torque | 1550 lb-ft |
Max Travel Speed | 65 MPH |
Fuel Tank Capacity | 100 Gallons |
Drivetrain | |
---|---|
Axles | Front: (2) tube-type steering axles, 2,12 m (83.4 in) track. Rear: (2) single reduction drive axles, 1,89 m (74.5 in) track. Inter-axle differential locks. Drive: 8 x 4 x 4. |
Transmission | Roadranger 11 speeds forward, 3 reverse, manual. Optional automated Eaton Fuller Ultrashift® PLUS Transmission |
Hydraulic | |
---|---|
Hydraulic Capacity | 147 Gallons |
Hydraulic System | Two load-sensing axial piston variable displacement pump (load sensing) with power limiting control and one gear pump for slewing and steering. Dual fan electric oil cooler. On screen display of hydraulic oil temperature. |
Operational | |
---|---|
Brakes | S-cam, dual air split system operating on all wheels. Spring-applied, air released parking brake acting on rear axles. Air dryer. ABS with traction control. |
Suspension | Front: Walking beam with air bags and shock absorbers. Rear: Walking beam with air bags and shock absorbers. |
Tires | Front: 445/65R 22.5 tubeless, mounted on aluminum disc wheels. Rear: 315/80R 22.5 tubeless, mounted on aluminum disc wheels. |
Steering | Front axles, single circuit, mechanical steering with hydraulic power assist. |
Outriggers | Four hydraulic telescoping, two-stage, double box beam outriggers and integral holding valves. Quick release type outrigger floats 610 mm (24 in) diameter. Four position setting with fully extended, 77%, 54%, and fully retracted capacities. Fifth (5th) front jack with sliding self-storing pad and automatic first-retract. Outrigger Monitoring System standard (required for North America and Canada). Maximum outrigger pad load: 45,360 kg (100,000 lb) |
Counterweight | 18,000 lbs. consisting of multiple sections with hydraulic installation/removal system operated from the cab. |
Gradeability | 70%, 1st gear |
Swing | Two planetary gearboxes with axial piston fixed displacement motors. Infinitely variable to 1.9 rpm. Spring-applied park brakes and hydraulic service brakes. |
Outrigger Controls | Located in the superstructure cab and on either side of carrier. Crane level indicators located at all stations. Auto leveling and wireless remote control standard. |
Rope Diameter | ¾” |
Rope Length | 653’ (Main Hoist) 420’ (Auxiliary Hoist) |
Rope Storage | 976’ |
Line Speed | 423 fpm |
Boom | |
---|---|
Max Boom Length | 40’-128’ |
Max Tip Height-Boom | 179.8’ |
Hoist | Main and auxiliary hoists are powered by axial piston motors with planetary gears and brakes. “Thumb-thumper” hoist drum rotation indicator alerts operator of hoist movement. Standard minimum wrap indication with lock-out. |
Boom Elevation | Single lift cylinder with integrated valve provides boom angle from -3.0˚ to 80.0˚. |
Max Capacity | 80 US Tons |
Boom Nose | Four nylatron sheaves, mounted with removable pin-type rope guards. Quick reeve boom nose. Removable auxiliary boom nose with removable pin type rope guard. |
Hoist Line Pull | 1st Layer: 22,100 lbs. 3rd Layer: 18,900 lbs. 5th Layer: 16,500 lbs. Max. Permissible line Pull: 17,160 lbs. 35X7 Class |
Electrical | |
---|---|
Electrical System | Four maintenance-free batteries provide 24 V electrical system. Standard lockable battery disconnect. |
Lighting | Lighting package including turn indicators, head, tail, brake, and hazard warning lights |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | Grove |
MODEL | TMS800-2 |
