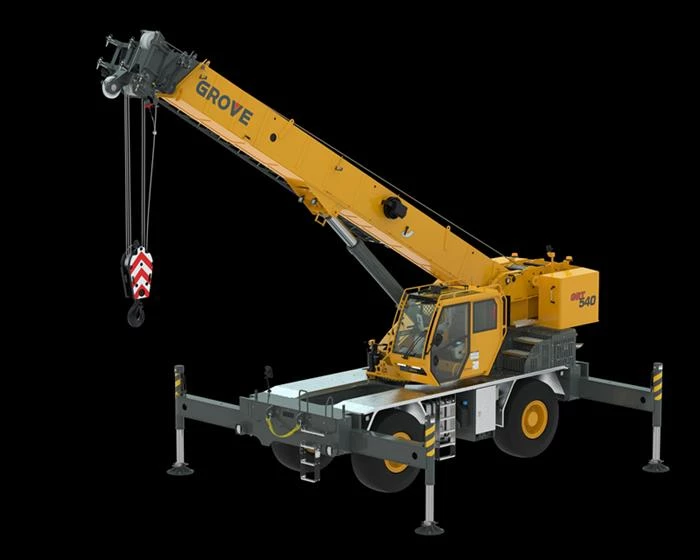

Cab
Full-vision, all-steel fabricated with acoustical lining and tinted safety glass throughout. Deluxe heated seat incorporates armrest-mounted electronic dual-axis controllers. Dash panel incorporates gauges for all engine functions. Other standard features include: hot water heater, air conditioning, sliding side windows, CE compliant roof glass with electric wiper and sunscreen, electric windshield wash/wipe, fire extinguisher and seat belt
Carrier Frame
Box section frame fabricated from high-strength, lowalloy steel. Front/rear towing and tie down lugs.
Engine Model
B 6.7 L diesel
Engine Type
Turbocharged with Diesel Exhaust Fluid. Meets emissions per E.U. EUROMOT5.
Torque
881 Nm at 1500 rpm.
Max Travel Speed
16.77 mph
Fuel Tank Capacity
66 Gallons
Control System
Rated Capacity Limiter (RCL) with 12 in. (30,5 cm) graphical display with operation via touch screen or the armrest mounted jog dial keypad. Load moment and anti-two block system with audio-visual warning and control lever lockout. This system provides electronic display of boom angle, boom length, load radius, boom tip height, maximum permissible load, actual load, and warning of impending two-block condition. Also displays the crane operating indicators, levels, warnings, and faults. Other features include a Working Range Limiter (WRL) which allows the operator to preselect and define working areas. If the crane approaches the operator’s preset limits, audio-visual warnings aid the operator in avoiding obstructions. ECO mode system to control engine rpm to lower noise and improve fuel consumption. Driving mode provides steering indication, fore/aft as well as side to side slope indication and travel speed.
Drive
4 x 4.
Fully independent power steering: Front: Full hydraulic steering wheel controlled. Rear: Full hydraulic switch controlled. Provides infinite variations of 4 main steering modes: front only, rear only, crab and coordinated. Rear steer indicator.
Transmission
Range-shift 6 speed (3 speeds x 2 range, both forward & reverse). Front axle disconnect for 4 x 2 travel.
Hydraulic Capacity
105 Gallons (reservoir)
Hydraulic System
Three section pressure compensated valve bank. Return line type filter with full flow by-pass protection and service indicator. Replaceable cartridge with micron filtration rating of 5/12/16. System pressure test ports.
Hydraulic Pump
Two main pumps (1) piston & (1) gear w/combined capacity of 380 LPM
Brakes
Full hydraulic split circuit operating on all wheels. High pressure springapplied, hydraulically released parking brake mounted on front axle.
Tires
Std. 16,00 x 25 - 28 bias ply. Option: 20,5 x 25 - 24 bias ply.
Front Axle
Drive/steer with differential and planetary reduction hubs rigid mounted to frame.
Rear Axle
Drive/steer with differential and planetary reduction hubs pivot mounted to frame.
Outriggers
Four hydraulic telescoping single-stage double box beam outriggers with inverted jacks and integral holding valves. Three position setting, 0%, 50% and fully extended. Polymer fabricated quick release type outrigger floats, 500 mm diameter. Maximum outrigger pad load: 30500 kg. Controls and crane level indicator in the cab. Includes automatic leveling features.
Gradeability
79% (Based on 29000 kg GVW) 16 x 25 tires, 31 m main boom and 35 t hookblock
Slew
Planetary swing drive with foot applied multi-disc brake. Spring applied, hydraulically released swing brake and plunger-type, one position mechanical house lock, operated from cab
Maximum Line Pull
12,137 lbf. with 34 x 37 class rope, cut by LMI at rope permissible line pull 11,240 lbf.
Rope Length
452’ (Main & Auxiliary Hoist)
Rope Construction
34w x K7, rotation Resistant
Single Line Speed
508 fpm
Telescopic Swingaway Extension
25.9’-44.9’ offsettable telescopic swingaway extension. Offsets at 0°, 15° and 30°. Stops alongside base boom section
Boom Type
Four-section, synchronized full-power boom
Hoist
Planetary reduction with automatic spring applied multi-disc wet brake. Electronic hoist drum rotation indicators, and hoist drum cable followers. Third wrap indictor with hoist function cut-out standard.
Boom Elevation
One double acting hydraulic cylinder with integral holding valve provides elevation from -2.5° to +79°
Electrical System
Two 12 V - maintenance free batteries. 24 V starting and lighting. Battery disconnect. CanBus Diagnostic system.
Lighting
Full LED lighting including turn indicators, head, tail, brake and hazard warning lights.
