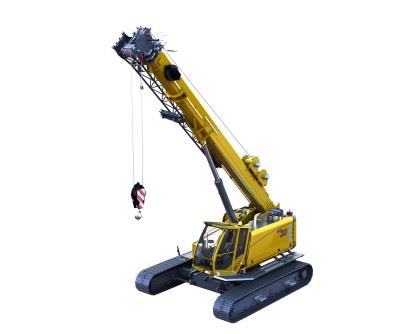

New Grove GHC30 Telescoping Crawler Crane for Sale The GHC30 provides outstanding versatility and durability in an easy to transport and easy to operate package. Optional attachments including pole claw and auger options enhance the versatility of this machine even further. Strong telescopic boom: The GHC30 comes equipped with a robust full-power, three-section boom that allows for telescoping under load. The main boom offers 10 m - 25,2 m (33 ft – 83 ft) of reach. This paired with the optional 13 m (42 ft 8 in) offsettable swingaway extension provides a maximum tip height of 40,2 m (132 ft). Travel made easy: Transportation to the jobsite can easily be accomplished in one load. Once on the jobsite, the GHC30’s narrow dimensions provide excellent maneuverability in confined areas. The strong undercarriage provides 100 percent pick and carry capability and work up to 4° of inclination. The hydraulically extendable tracks allow for three working gauges for maximum flexibility on the job. Comfort redefined: Operator cab is designed to deliver maximum comfort while incorporating conveniently located joystick controls for precise operation. Cab comes equipped with an integrated rated capacity limiter, air suspension seat, color monitor for up to four cameras and precise climate control. The cab can tilt up to 15° providing the operator additional comfort when working at long boom and extension lengths. CraneSTAR is an exclusive and innovative crane asset management system that helps improve your profitability and reduce costs by remotely monitoring critical crane data. Visit www.cranestar.com for more information |
Body | |
---|---|
Cab | Large capacity operator´s compartment that includes an air suspended operator’s seat with lumbar support, heated seat, headrest, 3 inch safety belt, ergonomic control panels, load sensing electric dual axis joystick controls, travel pedals and levers, exceptional sound insulation, split cab door with fold out window, excellent all around visibility, tinted safety glass, front and rear tilt out window, large skylight w/ sun protection, windshield and roof wiper/washer system, radio with USB input and Bluetooth, climate control (A/C, heat and defrost), fire extinguisher, and 15˚ tilt capability for improved overhead vision and ergonomic posture. Also equipped with a 7 inch monitor in cab for rear view, right side and hoist cameras. |
Frame | Durable all steel welded construction with extendable axle beams Side Frame: Four steel side frame beams that can be hydraulically extended or retracted via controls in the cab. 700 mm (28 in) triple bar maintenance free track shoes. Retracted gauge: 2,30 m (7.5 ft) Intermediate gauge: 3,05 m (10 ft) Extended gauge: 3,80 m (12.5 ft) *Note: These widths are from centerline to centerline of crawlers. |
Dimensions | |
---|---|
Length | 34.7’ |
Width | 7.4’ |
Height | 10.09’ |
Weight | 72,760 lbs. |
Operating Vehicle Weight | 72,760 lb |
Max Tip Height | 132' |
Engine | |
---|---|
Engine Make | Cummins |
Engine Model | QSB 4.5 L |
Engine Type | Diesel, turbocharged with Cummins Diesel Oxidation Catalyst (DOC) exhaust and Selective Catalytic Reduction (SCR) |
Cylinders | 4 |
Horsepower | 173 HP |
Max Travel Speed | 1.07-1.86 MPH |
Fuel Tank Capacity | 95 Gallons |
Hydraulic | |
---|---|
Hydraulic Capacity | 134 Gallons |
Hydraulic System | Load sensing hydraulic system with electronic over hydraulic controlled work functions, and load limit sensing control. Single variable-displacement piston pump with a two-section gear pump. Maximum output: 315 lpm (83.2 gpm). High performance, 3 micron filtration system for higher oil purity and extended oil service life. |
Maximum Pressure | 4786 PSI |
Operational | |
---|---|
Counterweight | 5000 kg (11,025 lb) - includes two removable counterweight inserts weighing 400 kg (882 lb) each |
Gradeability | 70% |
Swing | Two-speed, compact planetary gears with slant axis hydraulic motor and integrated brake valves. Sealed, externally geared slewing ring that allows for 360˚ of continuous rotation. Electronically applied service brake operated via foot pedal. Spring applied, hydraulically released parking brake. One position, hydraulically pinned house lock. |
Swing Speed | 0-2.2 RPM, variable |
Boom | |
---|---|
Max Boom Length | 33'-83' |
Hoist | Single--speed hoists driven via driven via an inclined axis hydraulic motor with compact planetary gear. Spring-loaded disc brake. Grooved drum with drum rotation indicator for both hoists that is located in the joystick controls. |
Boom Elevation | One double-acting hydraulic cylinder with integral holding valves. Elevation: -7˚ to 80˚ |
Max Capacity | 30 USt |
Boom Nose | Five nylatron sheaves on heavy-duty roller bearings with removable rope guards. Quick reeve type boom nose. |
Hoist Line Pull | Maximum hoist pull (first layer): 9500 lb. Maximum permissible single line pull: 7716 lb. Maximum single line speed: 371 ft/ min |
Electrical | |
---|---|
Electrical System | 24 volt with two 12-volt, maintenance-free batteries. Includes battery disconnect switch. |
Lighting | Lighting package includes two halogen lights integrated into the front side of the cab roof and one LED headlight on the upper carriage, right side. |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | Grove |
MODEL | GHC30 |
