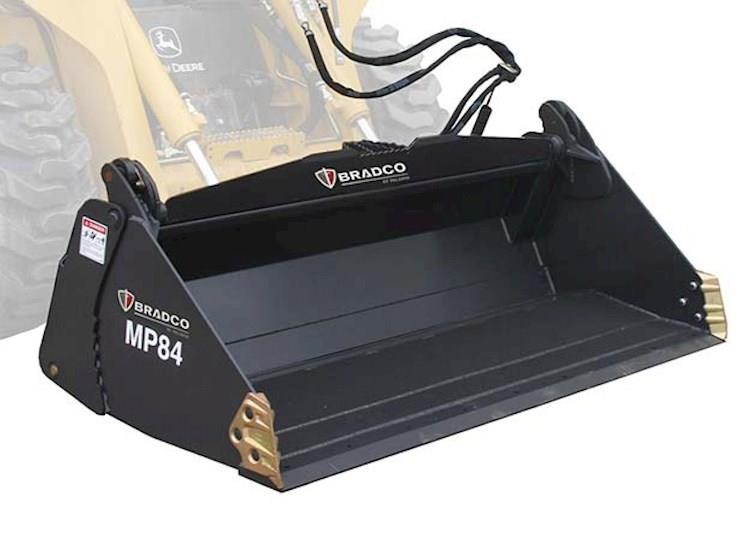

Bradco-Paladin 4 in 1 Bucket

New Bradco Multi-Purpose 4-in-1 Bucket for Sale

The Bradco 4-in-1 Multi-Purpose Bucket functions as a loader bucket, clam, grapple, dozer, box scraper and bottom dump bucket. Has strong hinges and pins to distribute load. The bottom dump buckets allow the operator to dump into high-side board trucks. This product is also available CE certified.



Comes in:

  • SD Buckets
    • MP60
    • MP66
    • MP72
  • HD Buckets
    • MP72
    • ​MP78
    • MP84
Dimensions
Length 37.47"
Width MP60 SD Bucket: 60”
MP66 SD Bucket: 66”
MP72 SD Bucket: 72”
MP72 HD Bucket: 73”
MP78 HD Bucket: 78”
MP84 HD Bucket: 84”
Height MP60, MP66 & MP72-SD Bucket: 27.32”
MP72, MP78 & MP84-HD Bucket: 27.69”
Weight MP60 SD Bucket: 585 lbs.
MP66 SD Bucket: 620 lbs.
MP72 SD Bucket: 655 lbs.
MP72 HD Bucket: 900 lbs.
MP78 HD Bucket: 935 lbs.
MP84 HD Bucket: 975 lbs.
Clam Length SD Buckets: 23.06"
MP72 & MP78 HD Buckets: 26"
MP84 HD Buckets: 27"
Clam Opening SD Buckets: 34.64"
SD Buckets: 34.79"
Backblade Length SD Buckets: 12.36"
HD Buckets: 11.52"
Hydraulic
Operating Pressure SD Buckets: 2250 PSI
HD Buckets: 3000 PSI
Operational
Capacity MP60 SD Bucket: 14.25 yd
MP66 SD Bucket: 15.75 yd
MP72 SD Bucket: 17.25 yd
MP72 HD Bucket: 19.99 cu/ft
MP78 HD Bucket: 21.69 cu/ft
MP84 HD Bucket: 23.4 cu/ft
Application Agriculture
Construction
Demolition & Recycling
Forestry
Land Management
Material Handling
Clamping Force SD Buckets: 2,354 lbs.
HD Buckets: 6,400 lbs.
Grapple Depth MP60, MP66 & MP72 SD Bucket: 34.5"
MP72, MP78 & MP84 HD Bucket: 37.47"
Heaped Opening MP60, MP66 & MP72 SD Bucket: 35"
MP72, MP78 & MP84 HD Bucket: 34.79"
Heaped Capacity MP60 SD Buckets: 12.23 cu/ft
MP66 SD Buckets: 15.76 cu/ft
MP72 SD Buckets: 17.23 cu/ft
MP72 HD Buckets: 19.99 cu/ft
MP78 HD Buckets: 21.69 cu/ft
MP84 HD Buckets: 23.4 cu/ft

Features

  • Functions as a loader bucket, clam, dozer, scraper and bottom dump bucket
  • Strong hinges and pins to distribute load
  • Replacement bolt-on wear edge, tooth bars and tooth bars that fit over bolt-on wear edge
  • Made of lightweight material with heavy duty hinges and pins to distribute load
  • Evenly distributes the load and provides the ability to handle more load capacity
  • Hose save spring kit is standard
  • SD & HD Buckets
    • Conventional or bottom dump buckets allows the operator to dump into high side board trucks
    • Long-floor design improves cutting edge visibility, for maximum accuracy when grading
    • Constructed of high tensile material for reduced weight and higher strength
  • HD Buckets
    • Dual check valve
    • Spherical bushings on cylinder ends
    • 1” x 6” cutter edge on front of clam and ¾” x 6” high carbon edge on rear of clam

Options

  • Bolt-on side cutters, spill guards
  • Spill guard, tooth bars and bolt-on edges
  • SD Buckets
    • Removable spill plate for improved visibility
  • HD Buckets
    • Side cutters
    • Bolt-on tooth bars
    • Bolt-on tooth bar that will fit with bolt on edge
