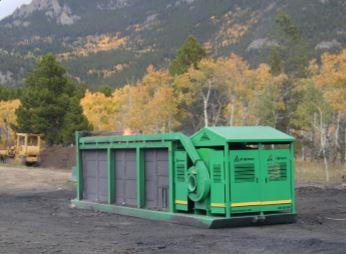

A self-contained, completely assembled above ground Air Curtain Burner (air curtain incinerator or FireBox) with a refractory lined burn-container and double steel floor and fittings for cable-hoist trucks in accordance with ANSI Specification Z245.60 for portable applications. Designed for the high temperature burning of wood waste, such as pallets, forest slash, land-clearing debris, general green waste, storm debris, and other waste streams within the USA in compliance with the requirements of US EPA 40CFR60. The machine is shipped from the factory completely assembled ready for immediate use. The firebox is also used for disaster recovery and Homeland Security contingencies and for certain MSW disposal applications in specific jurisdictions. Hook-lift versions are also available. |
| Body | |
|---|---|
| Air Curtain | Custom heavy duty air fan |
| Dimensions | |
|---|---|
| Length | Overall: 19’ Fire Box: 11’ |
| Width | Overall: 7’5” Fire Box: 5’ |
| Height | Overall: 8’6” Fire Box: 6’ |
| Weight | 32,000 lbs. |
| Engine | |
|---|---|
| Engine Make | Kubota |
| Engine Model | V2403-TE |
| Engine Type | Turbo Diesel Engine |
| Cylinders | 4 |
| Horsepower | 59 HP |
| Fuel Consumption | Approx. 2.5 Gal/Hr |
| Fuel Tank Capacity | 60 Gallon |
| Power | Full enclosure; security locks; Emission certified US EPA Tier 3; Engine mounted PTO |
| Operational | |
|---|---|
| Average Throughput | 2-4 Tons per Hour (Achievable through-put depends on several variables, especially the nature of the waste material, the burn chamber temperature and the loading rate. All weights and dimensions are approximate and metric conversions are rounded. Subject to change without notice.) |
| Firebox | 4" (102 mm) thick refractory panels filled with proprietary thermal ceramic material; Two full height rear doors; Ignition hole on manifold side |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Air Burners |
| MODEL | S-111R |
